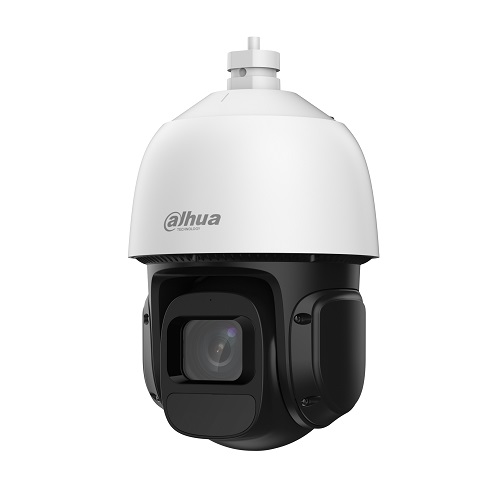

2.0Megapixel FULLHD Network PTZ Camera, 16x zoom SD3D216NB-GNY

Camera

Image Sensor

<!–{v.name}–>

1/2.8″ CMOS

Pixel

<!–{v.name}–>

2 MP

Max. Resolution

<!–{v.name}–>

1920 (H) x 1080 (V)

ROM

<!–{v.name}–>

128 MB

RAM

<!–{v.name}–>

128 MB

Electronic Shutter Speed

<!–{v.name}–>

1 s–1/30,000 s

Scanning System

<!–{v.name}–>

Progressive

Min. Illumination

<!–{v.name}–>

0.005 lux@F1.6 (Color, 30 IRE);

0.0005 lux@F1.6 (B/W, 30 IRE);

0 lux (Illuminator on)

Illumination Distance

<!–{v.name}–>

80 m (262.47 ft) (IR)

Illuminator On/Off Control

<!–{v.name}–>

Zoom Prio; Manual; Auto; Off

Illuminator Number

<!–{v.name}–>

3 (IR)

Lens

Focal Length

<!–{v.name}–>

5.0 mm–80 mm

Max. Aperture

<!–{v.name}–>

F1.6–F3.5

Field of View

<!–{v.name}–>

H: 54.4°–4.1° ; V: 31.4°–2.3°; D: 61.3°–4.7°

Optical Zoom

<!–{v.name}–>

16x

Focus Control

<!–{v.name}–>

Auto; Semi-auto; Manual

Close Focus Distance

<!–{v.name}–>

0.1 m–1 m (0.33 ft–3.28 ft)

Iris Control

<!–{v.name}–>

Fixed

DORI Distance

<!–{v.name}–>

Lens

<!–{v2}–>

Detect

<!–{v2}–>

Observe

<!–{v2}–>

Recognize

<!–{v2}–>

Identify

<!–{v2}–>

5.0 mm–80 mm

<!–{v2}–>

1,103.4 m

( 3,620.08 ft)

<!–{v2}–>

435.9 m

( 1,430.12 ft)

<!–{v2}–>

220.7 m

( 724.08 ft)

<!–{v2}–>

110.3 m

( 361.88 ft)

<!–{v2}–>

PTZ

Pan/Tilt Range

<!–{v.name}–>

Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180°

Manual Control Speed

<!–{v.name}–>

Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s

Preset Speed

<!–{v.name}–>

Pan: 0.1°–40°/s; Tilt: 0.1°–40°/s

Preset

<!–{v.name}–>

300

Power-off Memory

<!–{v.name}–>

Yes

Idle Motion

<!–{v.name}–>

Preset

PTZ Protocol

<!–{v.name}–>

DH-SD

Smart Event

IVS

<!–{v.name}–>

Tripwire; intrusion

Intelligence

SMD

<!–{v.name}–>

SMD 3.0

Video

Video Compression

<!–{v.name}–>

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Streaming Capability

<!–{v.name}–>

2 streams

Resolution

<!–{v.name}–>

1080p (1920 x 1080); 1.3MP (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Video Frame Rate

<!–{v.name}–>

Main stream: 1080p/1.3M/720p @(1–25/30 fps)

Sub stream: D1/VGA/CIF@ (1–25/30 fps)

Bit Rate Control

<!–{v.name}–>

CBR/VBR

Video Bit Rate

<!–{v.name}–>

H.264: 64 kbps–8,192 kbps

H.265: 25 kbps–6,400 kbps

Day/Night

<!–{v.name}–>

Auto (ICR); Color/B/W

BLC

<!–{v.name}–>

Yes

WDR

<!–{v.name}–>

120 dB

HLC

<!–{v.name}–>

Yes

White Balance

<!–{v.name}–>

Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp

Gain Control

<!–{v.name}–>

Auto; manual

Noise Reduction

<!–{v.name}–>

2D NR; 3D NR

Motion Detection

<!–{v.name}–>

Yes

Region of Interest (RoI)

<!–{v.name}–>

Yes

Defog

<!–{v.name}–>

Electronic Image Stabilization (EIS)

Digital Zoom

<!–{v.name}–>

5x

Image Rotation

<!–{v.name}–>

180°

S/N Ratio

<!–{v.name}–>

?55 dB

Network

Network Port

<!–{v.name}–>

RJ-45 (10/100 Base-T)

Network Protocol

<!–{v.name}–>

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;SSL;FTP;ARP;RTCP;RTP;IP Filter;RTMP

Interoperability

<!–{v.name}–>

CGI;SDK;ONVIF (Profile S & Profile T)

Streaming Method

<!–{v.name}–>

Unicast/Multicast

User/Host

<!–{v.name}–>

20 (total bandwidth: 64 M)

Storage

<!–{v.name}–>

Micro SD card (256 GB); FTP

Browser

<!–{v.name}–>

IE 7 and later versions;

All Chrome versions;

All Firefox versions;

All Safari versions

Management Software

<!–{v.name}–>

DSS Pro

Mobile Client

<!–{v.name}–>

iOS;Android

Certification

Certifications

<!–{v.name}–>

CE: EN55032/EN55024/EN50130-4

Port

Alarm Linkage

<!–{v.name}–>

Capture; recording; send email

Alarm Event

<!–{v.name}–>

Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

<!–{v.name}–>

12 VDC, 2 A ± 10%

PoE+ (802.3at)

Power Consumption

<!–{v.name}–>

Basic: 8 W

Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation + Heater ): 18 W (12 VDC)

Power Adapter

<!–{v.name}–>

Optional

Environment

Operating Temperature

<!–{v.name}–>

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<!–{v.name}–>

?95%

Protection

<!–{v.name}–>

IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection

Structure
