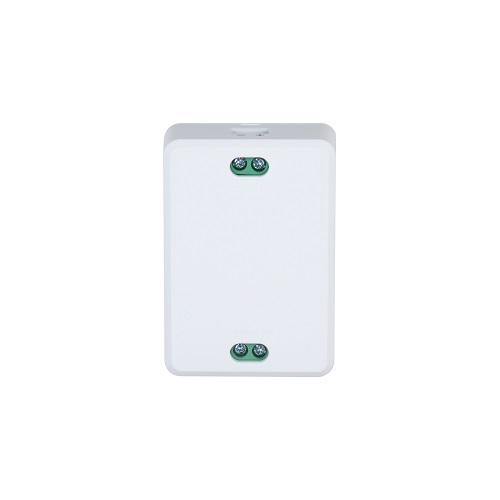

2-Wire Network Controller VTNC1003C

Description

Features:
In a 2-wire hybrid system, the 2-wire controller isolates the power supply and the signal to reduce the absorption of signals by the power supply of the input terminal during transmission.
Power Supply: DC 48 V.
Power adapter: DC 48 V/0.9 A.
Power consumption: 3.5W.
Suitable for models: VTH5113H, VTH5123H; VTO2023S, VTO2003F.
Dimensions: 65.2 mm x 46.2 mm x 23.2 mm.
Casing material: PC + ABS.
Colour: white.
Weight: 130g.
Operating temperature: -10°C to +55°C.
Operating humidity: 10%-95%RH.
Certifications: CE, FCC.
Warranty: 36 months.
