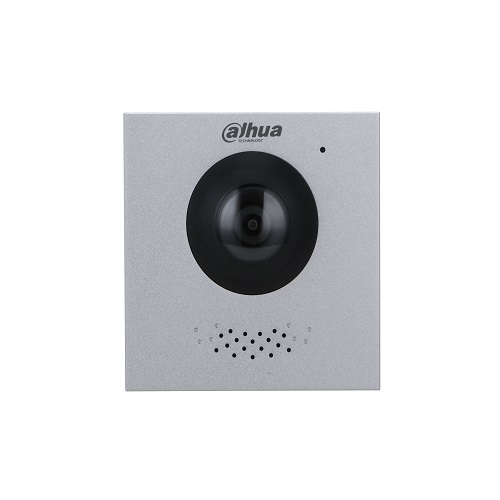

2Mp Modular Apartment Door Station VTO4202F-P, 2-Wire switch

SKU: VTO4202F-PS2

145€

2 in stock
Shipping:
 Venipak courier 1-3 business days: 7.90 euro
 Venipak pickup 1-3 business days: 3.30 euro
Monthly payment from 3.01 €
Minimum down payment from 0.00 €

Description

System
Main Processor Embedded processor
Operating System Embedded Linux Operation System
Button Type Mechanical
Interoperability ONVIF; CGI
Network Protocol SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP
Basic
Camera 1/2.5″ 2MP CMOS Low Illumination HD Colorful Fisheye Camera
Field of View Horizontal: 168.6°; vertical: 87.1; diagonal:176.7°
Focal Length 1.9 mm
WDR 120 dB
Noise Reduction 3D NR
Video Compression H.265
Video Resolution 50Hz:
Main Stream (720P@25 fps), sub stream (1080P@25 fps)
60Hz:
Main Stream (720P@30 fps), sub stream (1080P@30 fps)
Video Frame Rate 25 fps
Video Bit Rate 256 Kbps to 4 Mbps
Light Compensation Auto IR
Day/Night Auto (ICR)
Audio Compression G.711a; G.711u; PCM
Audio Input 1 channel
Audio Output Built-in speaker
Audio Mode 2-way voice communication
Audio Enhancement Echo suppression/digital noise reduction
Audio Bit Rate 16 KHz, 16 Bit
Status Indicator Light 3
Port
Electric Lock 1
Alarm Output 1
Power Output 1-ch 12 VDC 100mA
Exit Button 1
Door Status Detection 1
Lock Control 1
Network Port One RJ45 10M/100M network port
General
Appearance color Silver
Power Supply Dahua 2-wire switch (max. power supply distance 50 m)
DC 48V 1A
Standard PoE
Power Adapter Optional
Installation Flush/surface mount
Certifications CE; FCC; UL
Accessory Flush/surface mount
Product Dimensions 100 mm × 100 mm × 36 mm (3.94″ × 3.94″ × 1.41″)
Protection IK07; IP65
Operating Temperature –30°C to +60°C (–22°F to 140°F)
Operating Humidity 10%–90% (RH, non-condensing)
Operating Altitude 0 m–3000 m
Power Consumption = 12W
Net Weight 0.35 kg (0.77 lb)
Gross Weight 0.4 kg (0.88 lb)
