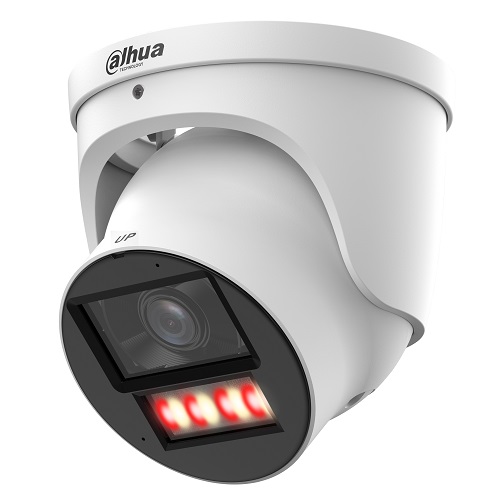

4K IP Network Camera 8MP IPC-HDW5859H-ASE-PV-PRO3.6mm | HDW5859PRO36

Camera

Image Sensor

<!–{v.name}–>

1/1.8″ CMOS

Max. Resolution

<!–{v.name}–>

3840 (H) x 2160 (V)

ROM

<!–{v.name}–>

4 GB

RAM

<!–{v.name}–>

2 GB

Scanning System

<!–{v.name}–>

Progressive

Electronic Shutter Speed

<!–{v.name}–>

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

<!–{v.name}–>

0.0005 lux@F1.0(Color, 30IRE)

0.0003 lux@F1.0 (B/W, 30IRE)

0 lux (Illuminator on)

S/N Ratio

<!–{v.name}–>

>56 dB

Illumination Distance

<!–{v.name}–>

Up to 60 m (196.85 ft) (IR)

Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control

<!–{v.name}–>

Auto;Manual

Illuminator Number

<!–{v.name}–>

4 (Multi-core (IR + warm) light)

Angle Adjustment

<!–{v.name}–>

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

<!–{v.name}–>

Fixed-focal

Lens Mount

<!–{v.name}–>

M16

Focal Length

<!–{v.name}–>

3.6 mm

Max. Aperture

<!–{v.name}–>

F1.0

Field of View

<!–{v.name}–>

3.6 mm: H: 93°; V: 50°; D: 111°

Iris Control

<!–{v.name}–>

Fixed

Close Focus Distance

<!–{v.name}–>

3.6 mm: 4.4 m (14.44 ft)

DORI Distance

<!–{v.name}–>

Lens

<!–{v2}–>

Detect

<!–{v2}–>

Observe

<!–{v2}–>

Recognize

<!–{v2}–>

Identify

<!–{v2}–>

<!–{v2}–>

<!–{v2}–>

<!–{v2}–>

<!–{v2}–>

<!–{v2}–>

3.6 mm

<!–{v2}–>

100.0 m

( 328.08 ft)

<!–{v2}–>

40.0 m

( 131.23 ft)

<!–{v2}–>

20.0 m

( 65.62 ft)

<!–{v2}–>

10.0 m

( 32.81 ft)

<!–{v2}–>

Intelligence

EPTZ

<!–{v.name}–>

Yes

IVS (Perimeter Protection)

<!–{v.name}–>

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle, animal and human); loitering detection, people gathering, parking detection, stay detection. Offers Perimeter Protection Large-Scale AI Models to extend the target detection range and reduce the rate of false alarm. Supports self-learning, it filters out false alarms.

SMD

<!–{v.name}–>

SMD 4.0

AcuPick

<!–{v.name}–>

Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people, animal and motor vehicles, and search through live and recorded videos to quickly locate targets.

Face Detection

<!–{v.name}–>

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.

People Counting

<!–{v.name}–>

Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management, generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management.

Heat Map

<!–{v.name}–>

Yes

Video Metadata

<!–{v.name}–>

Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.

Extraction of motor vehicle and non-motor vehicle attributes: extracts 6 attributes for motor vehicle and 6 attributes for non-motor vehicle.

Extraction of face and human body attributes: extracts 6 attributes for face and 8 attributes for human body.

Smart Search

<!–{v.name}–>

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

<!–{v.name}–>

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

AI Coding

<!–{v.name}–>

AI H.265; AI H.264

*Includes smart codec technology, Smart H.265+ and Smart H.264+.

Video Frame Rate

<!–{v.name}–>

Main stream: 3840 x 2160@(1 fps–25/30 fps)

Sub stream: 704 x 576@(1 fps –25 fps)/704 x 480@(1 fps–30 fps)

Third stream: 1920 x 1080@(1 fps–25/30 fps)

Fourth stream: 1280 x 720@(1 fps–25/30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Streaming Capability

<!–{v.name}–>

4 streams

Resolution

<!–{v.name}–>

8M (3840 x 2160); 6M (3072 x 2048/3200 x 1800); 5M (3072 x 1728/2592 x 1944/2960 x 1668); 4M (2688 x 1520/2560 x 1440); 3M (2048 x 1536/2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240)

Bit Rate Control

<!–{v.name}–>

VBR;CBR

Video Bit Rate

<!–{v.name}–>

H.264: 3 kbps–16384 kbps

H.265: 3 kbps–16384 kbps

Day/Night

<!–{v.name}–>

Auto(ICR)/Color/B/W

BLC

<!–{v.name}–>

Yes

HLC

<!–{v.name}–>

Yes

WDR

<!–{v.name}–>

120 dB

Scene Self-adaptation (SSA)

<!–{v.name}–>

Yes

White Balance

<!–{v.name}–>

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

<!–{v.name}–>

Auto/Manual

Noise Reduction

<!–{v.name}–>

3D NR

Motion Detection

<!–{v.name}–>

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

<!–{v.name}–>

Yes (4 areas)

Smart Illumination

<!–{v.name}–>

Yes

Smart Dual Light

<!–{v.name}–>

Yes

Defog

<!–{v.name}–>

Yes

Image Rotation

<!–{v.name}–>

0°/90°/180°/270° (Support 90°/270° with 4M (2688 x 1520) resolution and lower)

Mirror

<!–{v.name}–>

Yes

Privacy Masking

<!–{v.name}–>

4 mosaics or 8 color blocks

LDC

<!–{v.name}–>

Yes

Audio

Built-in MIC

<!–{v.name}–>

Yes, built-in dual Mic

Built-in Speaker

<!–{v.name}–>

Yes, built-in speaker

Audio Compression

<!–{v.name}–>

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

<!–{v.name}–>

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception

Network

Network Port

<!–{v.name}–>

RJ-45 (10/100 Enhancement Base-T)

SDK and API

<!–{v.name}–>

Yes

Network Protocol

<!–{v.name}–>

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Auto Registration

Interoperability

<!–{v.name}–>

ONVIF (Profile S & Profile G & Profile T & Profile M); CGI

User/Host

<!–{v.name}–>

20 (Total bandwidth: 80 M)

Storage

<!–{v.name}–>

FTP; SFTP; Micro SD card (support max. 1 TB); NAS

Browser

<!–{v.name}–>

IE: IE 11 and later

Chrome: Chrome 102 and later

Firefox: Firefox 88 and later

Management Software

<!–{v.name}–>

DSS; DMSS; DoLynk Care

Mobile Client

<!–{v.name}–>

iOS;Android

Security

<!–{v.name}–>

Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning

Function

Light Warning

<!–{v.name}–>

Warm light warning

Flash/Solid on duration: 5 s–30 s

Flash frequency: high, medium, low

Sound Warning

<!–{v.name}–>

Offers 11 sound alarms and supports importing 10 custom sound alarms.

Sound: 0–100

Play times can be set from 1 to 10.

Certification

Certifications

<!–{v.name}–>

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;

Port

RS-485

<!–{v.name}–>

1 (baud rate range: 1200 bps–115200 bps)

Audio Input

<!–{v.name}–>

1 channel (RCA port)

Audio Output

<!–{v.name}–>

1 channel (RCA port)

Alarm Input

<!–{v.name}–>

1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output

<!–{v.name}–>

1 channel out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC

Power Output

<!–{v.name}–>

12 VDC power output, max. current 165 mA, peak current 700 mA

Power

Power Supply

<!–{v.name}–>

12 VDC (±30%); PoE+ (802.3at); ePoE

Dual Power Backup

<!–{v.name}–>

When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.

Power Consumption

<!–{v.name}–>

Basic: 4.1 W (12 VDC); 4.8 W (PoE)

Max. (IR on + WDR + intelligence on + siren and light active deterrence): 21.6 W (12 VDC); 24.2 W (PoE)

ePoE

<!–{v.name}–>

Yes

Environment

Operating Temperature

<!–{v.name}–>

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<!–{v.name}–>

?95% (RH), non-condensing

Storage Temperature

<!–{v.name}–>

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<!–{v.name}–>

?95% (RH), non-condensing

Protection

<!–{v.name}–>

IP67; IK10

Structure

Casing Material

<!–{v.name}–>

Metal

Product Dimensions

<!–{v.name}–>

127.6 mm x ?122.0 mm (5.02″ x ?4.80″)

Net Weight

<!–{v.name}–>

0.92 kg (2.03 lb)

Gross Weight

<!–{v.name}–>

1.15 kg (2.54 lb)
