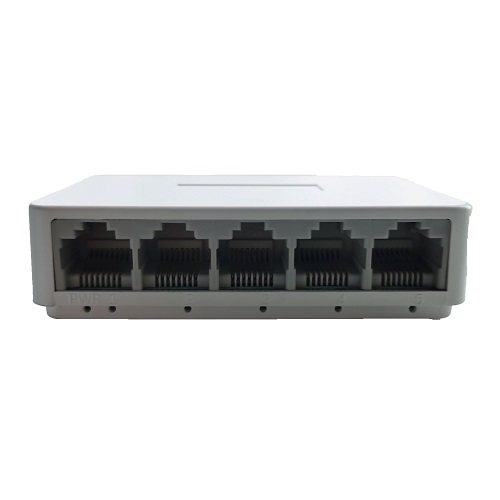

5-Port Gigabit Ethernet Switch

5-Port Gigabit Ethernet Switch.


Features:
Ethernet switch with 5x 10/100/1000Mbps auto-sensing RJ45 ports, auto MDI/MDIX.
Plug&Play, no need for more configuration. Auto-detecting of parallel / cross lines. Simplify the network structure and maintenance.
Supports connection with IP Cameras and wireless AP.
Store and forwarding mode.
Large-capacity cache chip design and full port support wire-speed forwarding mode ensure 7×24 hours stable and smooth for video and data transmission.
Low power consumption. Max total power consumption < 3W. Supports desktop/wall mounted installation. This switch is designed as CCTV surveillance Network Switch for simple network environments including home, school dormitory, office and small scale surveillance system etc.

Specifications:
Network protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE802.3ab, IEEE802.3z.
Ports: 5×10/100/1000Mbps auto-sensing RJ45 (Auto MDI/MDIX).
MAC address table: 2000.
Buffer memory: 1M.
Power input: AC (50-60Hz) 100V~240V 0.5A.
Power output: 5V/1A (external power adapter).
Power consumption: standby: 0.5W; max: <3W. Operating temperature: -20°C ~ +55°C. Operating humidity: 10-90% RH. Size: 90x35x22 mm. Certification: CE, FCC, RoHS.

Warranty: 24 months.
