Automatic Transfer Switch CNC 4P 220V 100A | NV822478

Code: NV822478

40.90€

5 in stock

Automatic Transfer Switch CNC 4P 220V 100A | NV822478, PV Box, PV Box Automatic Transfer Switch CNC 4P 220V 100A | NV822478, buy Automatic Transfer Switch CNC 4P 220V 100A | NV822478, cheap Automatic Transfer Switch CNC 4P 220V 100A | NV822478, best Automatic Transfer Switch CNC 4P 220V 100A | NV822478, online Automatic Transfer Switch CNC 4P 220V 100A | NV822478

SKU: 6942034368548 Category:
Shipping:
 Venipak courier 2-3 business days: 3.90 euro
 Venipak pickup 2-3 business days: 3.30 euro

Description

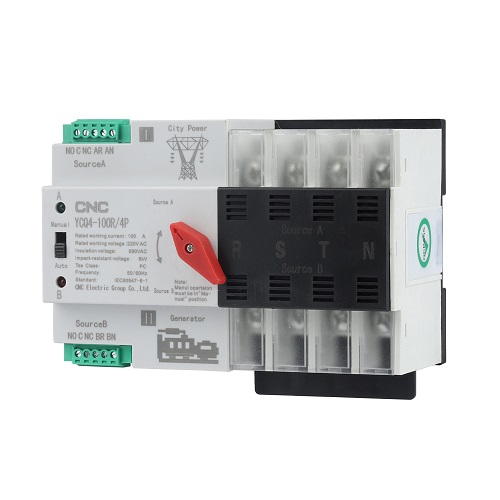

Automatic transfer switch YCQ4-100R/4P 220V 100A


Features:
Automatic transfer switch 220VAC, 100A for emergency power supply system 50/60Hz, transfer time <50ms. The switch can also be operated manually. The switch complies requirements of low voltage switch gear and control gear specified by IEC 60947-6-1. Compact design, reliable switching, easy installation on a DIN rail. It is widely applicable in various occasions where continuous power failure is not allowed.

Specifications:
Voltage: AC220V.
Current: 100A.
Frequency: 50/60Hz.
Number of contacts: 4.
Insulation voltage (Ui): AC 690V.
Rated voltage (Ue): AC 400V.
Rated conditional short-circuit current: 50 kA.
SCPD (fuse): RT16-00-63A.
Rated impulse withstand voltage: 8 kV.
Main voltage: AC 220V.
Auxiliary circuit: AC 220V.
Contact transfer time: <50 ms. Operating transfer time: <50ms. Return transfer time: <50ms. Off- time: <50ms. Installation: on a DIN rail. Dimensions: 100x142x76 mm. Mechanical life: 5000 times. Electrical life: 2000 times. Weight: 656g.

Warranty: 24 months.
