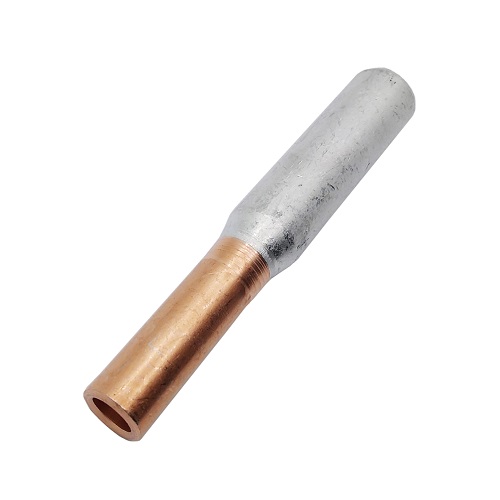

Bimetallic Connector (Link) Al+Cu, for 16+10mm2 Cables, 10pcs

Bimetallic connector (link) Al+Cu, for 16+10mm² cables, 10 pcsFeatures: Designed to join aluminum sector conductors to conventional stranded copper conductors.Prefilled with jointing compound.Solid centre barrier.Friction welded.Specifications: Aluminium cable cross-section: 16.0mm².Copper cable cross-section: 10.0mm².Material: aluminium >/=99.5% + copper >/=99.9%.Surface: bright.Isolated: no.Length: 75mm.Aluminium connector depth: 35mm.Copper connector depth: 30mm.Inspection hole: no.Aluminium connector inner diameter: 6.0mm.Aluminium connector outer diameter: 10mm.Copper connector inner diameter: 5.0mm.Copper connector outer diameter: 9mm.Set includes 10 pcs.
