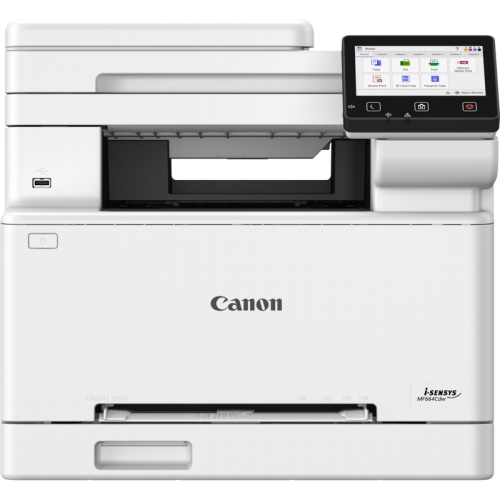

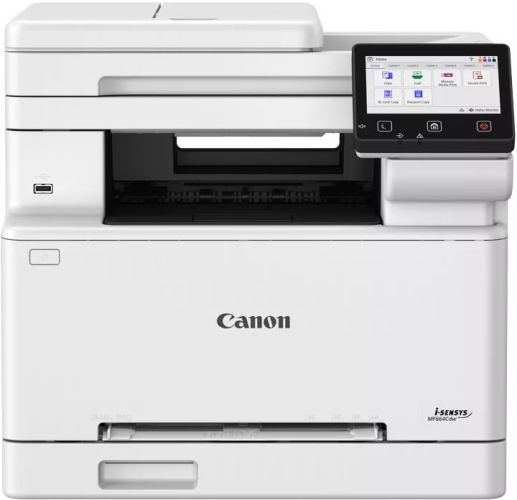

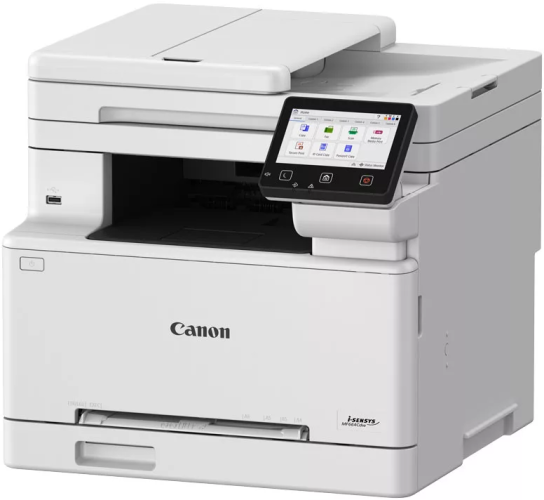

Canon i-SENSYS MF664Cdw Printer Laser Colour MFP A4 25 ppm USB Ethernet LAN Wi-Fi

General Specifications

Machine Type

Colour Laser All-In-One

Available Functions

Print, Copy and Scan

Print Specifications

Print Speed

Single sided: Up to 25 ppm (A4)
Up to 45.3 ppm (A5-Landscape)
Double sided: Up to 15 ipm (A4)

Printing Method

Colour laser beam printing

Print Resolution

Up to 1200 x 1200 dpi

Warm-up Time

Approx. 13 seconds or less from power on

First-Print-Out Time

Colour approx.: 10.93 seconds or less
Mono approx.: 10.90 seconds or less

Printer Languages

UFRII, PCL5c, PCL6

Fonts

45 PCL fonts

Print Margins

5 mm-top, bottom, left and right
10 mm-top, bottom, left and right (Envelope)

Toner Saver Mode

Yes

Advanced Printing Features

Encrypted Secure Print
Secure Print
Print from USB memory key (JPEG/TIFF/PDF)
Print from Cloud (Dropbox, GoogleDrive, OneDrive) (PDF/JPEG)
Microsoft Universal Print support
iOS: AirPrint, Canon PRINT app
Android; Mopria certified, Canon Print Service Plug-in, Canon PRINT app, IPP everywhere

Copy Specifications

Copy Speed

Single sided (A4): Up to 25 ppm
Double sided (A4): Up to 15 ipm

First-Copy-Out Time

ADF (A4):
Colour Approx. 10.6 seconds or less
Mono Approx. 10.5 seconds or less
Platen (A4):
Colour Approx. 11.2 seconds or less
Mono Approx. 11.0 seconds or less

Copy Resolution

Up to 600 x 600 dpi

Copy Modes

Text/Photo/Map (Default),Text/Photo/Map (quality), Printed Image, Text

Double Sided Copying

1-sided to 2-sided (Automatic)

Multiple Copies

Up to 999 copies

Reduction / Enlargement

25-400% in 1% increments

Other Features

Preset R/E Ratios by Area, Two-Sided, Density Adjustment, Original Type Selection, Two-sided Original, Sort, N on 1, Sharpness, Erase Frame, Copy ID Card, Copy Passport, Color Mode, Reserved copy

Scan Specifications

Standard Type

Colour

Scan Resolution

Optical: Up to 600 x 600 dpi
Enhanced: Up to 9600 x 9600 dpi

Scan Speed

Single sided mono: 50ipm (300x300dpi)
Single sided colour: 40ipm (300x300dpi)
Single sided mono: 40ipm (300x600dpi)
Single sided colour: 20ipm (300x600dpi)

Colour Scanning Depth

24 bit/24 bit (input/output)

Greyscales

256 levels

Compatibility

TWAIN , WIA, ICA

Maximum Scan Width

216mm

Scan to PC
Scan to USB Memory Key
Scan to FTP

TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b

Scan to Cloud

TIFF/JPEG/PDF/Compact PDF/Searchable PDF / PDF/A-1b

Media Handling

Scanner Type

Platen, ADF

Paper Input (Standard)

250-sheet cassette
1-sheet manual feed slot
50-sheet ADF

Maximum Paper Input Capacity

251 sheets

Paper Output

100-sheet

Media Types

Plain paper, Recycled paper, Heavy Paper, Thin paper, Colour paper, Coated paper, Label, Post card, Envelope

Media Sizes

Cassette:
A4, A5, A5 (Landscape), B5, A6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelop (COM10, DL, C5, Monarch),
Custom sizes: Min. 76.2 x 127 mm, Max. 216 x 355.6 mm.

Multi-purpose tray:
A4, A5, A5 (Landscape), B5, A6, Legal, Letter, Executive, Statement, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K, Post card, Indexcard, Envelope (COM10, DL, C5, Monarch),
Custom sizes: Min 76.2 x 127 mm, Max. 216 x 355.6 mm.

ADF:
A4, A5, A6, B5, Legal, Letter, Statement,
Custom sizes: Min. 48 x 85.0 mm, Max. 216.0 x 355.6 mm

Media Weights

Cassette: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
Multi-purpose tray: 60 to 163 g/m² (Up to 200 g/m² with Coated paper)
ADF: 50 to 105 g/m²

Double Sided Printing

Automatic
Cassette:
A4, B5, Legal, Letter, Executive, OFFICIO, B-OFFICIO, M-OFFICIO, GLTR, GLGL, Foolscap, 16K
Custom size – Min. 182 x 257 mm, Max. 216 x 355.6 mm
60 to 200 g/m²

Interface & Software

Interface Type

USB 2.0 Hi-Speed, 10BASE-T/100BASE-TX/1000Base-T, Wireless 802.11b/g/n, Wireless Direct Connection

Operating System Compatibility

Windows® 11 / Windows® 10 / Server® 2025 /Server® 2022 / Server® 2019 / Server® 2016
Mac OS X version 10.15 & up
Linux

Network Protocol

Print:
TCP/IP (LPD/Port9100/IPP/IPPS/WSD)
Scan:
Push Scan: File: FTP (TCP/IP), SMB3.1.1 (TCP/IP)
E-mail/I-Fax: SMTP (send), POP3 (receive)
Pull Scan: TCP/IP

Management:
SNMPv1, SNMPv3 (IPv4,IPv6)

Security:
TLS1.3, IPSec, IP address filtering, IEEE802.1X, SNMPv3, SSL (HTTPS, IPPS)
Security (wireless):
Infrastructure Mode:
WPA-PSK(AES), WPA2-PSK(AES), WPA3-SAE (AES), WPA-EAP(AES), WPA2-EAP(AES), WPA3-EAP(AES)
Access Point Mode:
WPA2-PSK(AES), WPA3-SAE (AES)

Software and Printer Management

MF Scan Utility,
Remote User Interface (RUI),
Department ID Management,
Toner Status Tool,
iW Enterprise Management Console: Server-based software for centralised management of a fleet of devices
Cooperating with External Security Audit System (Security Information and Event Management)
eMaintenance: embedded RDS allows remote eMaintenance services such as meter capture, automatic consumables management and remote diagnostics.
Application Library

General Features

Recommended Monthly Print Volume

250 – 2,500 pages per month

Duty Cycle

Max. 30,000 pages per month

Processor Speed

1200MHz

Memory

1GB

Storage

4GB

Control Panel

12.7 cm LCD Colour Touch Screen

Dimensions with Trays
(W x D x H)

425 mm x 461 mm x 397 mm

Installation Space
(W x D x H)

701 mm x 1,020 mm x 785 mm

Weight

Approx. 20.8 Kg

Power Source

220-240V(±10%) 50/60Hz (±2Hz)

Power Consumption

Maximum: Approx. 980 W
Active printing: Approx. 580 W
Standby: Approx. 12.0 W
Sleep mode: Approx. 1.0 W
Typical Electricity Consumption (TEC): 0.23 kWh/week
For detailed information relating to Lot26 regulation, please go to:
https://www.canon-europe.com/business/lot26/

Noise Levels

Sound Pressure:
Active: Simplex 53 dB / Duplex 52 dB
Standby: Inaudible

Sound Power:
Active: Simplex 67 dB or less (BW) / 66 dB or less (CL)
Duplex 66 dB or less
Standby: Inaudible

Consumables

Cartridges

Cartridge 075 Black (1,400 pages)
Cartridge 075H Black (3,500 pages)
Cartridge 075 Cyan (1,300 pages)
Cartridge 075H Cyan (2,500 pages)
Cartridge 075 Magenta (1,300 pages)
Cartridge 075H Magenta (2,500 pages)
Cartridge 075 Yellow (1,300 pages)
Cartridge 075H Yellow (2,500 pages)
