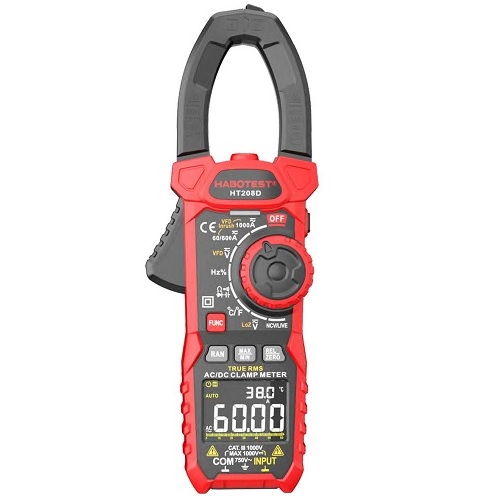

Clamp Meter DC1000V/1000A, AC750V/1000A | HT208D

Code: HT208D

72€

10 in stock

Clamp Meter DC1000V/1000A, AC750V/1000A | HT208D, Measuring Tools, Measuring Tools Clamp Meter DC1000V/1000A, AC750V/1000A | HT208D, buy Clamp Meter DC1000V/1000A, AC750V/1000A | HT208D, cheap Clamp Meter DC1000V/1000A, AC750V/1000A | HT208D, best Clamp Meter DC1000V/1000A, AC750V/1000A | HT208D, online Clamp Meter DC1000V/1000A, AC750V/1000A | HT208D

SKU: 9990000991846 Category:
Shipping:
 Venipak courier 2-3 business days: 3.90 euro
 Venipak pickup 2-3 business days: 3.30 euro

Description

Clamp meter DC1000V/1000A, AC750V/1000A


Features:
Digital clamp meter integrates multiple measurements functions as AC voltage, DC voltage, AC current, DC current, resistance, capacitance up to 100mF, frequency up to 10MHz, duty, diode and circuit continuity.
Multimeter has NCV (non-contact voltage) sensor and non-contact current measurement jaw.
Screen backlight, temperature measurement function, low battery warning. 6000 counts display.
Automatic power off for battery saving.
Compact, ergonomically shaped, comfortable to hold in the hand, the body is resistant to mechanical damage. With special brackets for fixing cables and a bracket for hanging the device on the wall.
Complete with test leads, thermometer probe and a soft case. Batteries are not included.


Technical specifications:
DC voltage: 600mV / 6V / 60V / 600V / 1000V; accuracy +/-(0.5%+3).
DC current: 60A / 600A / 1000A; accuracy +/-(2.5%+5).
AC voltage: 600mV / 6V / 60V / 600V / 750V; accuracy +/-(0.8%+3).
AC current: 60A / 600A / 1000A; accuracy +/-(2.5%+5).
Resistance: 600Om / 6kOm / 60kOm / 600kOm / 6MOm / 60MOm; accuracy +/-(0.8%+3).
Capacitance: 10nF / 100nF / 1uF / 10uF / 100uF / 1mF / 10mF / 100mF; accuracy +/-(4.0%+5).
Frequency: 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz; accuracy +/-(1.0%+3).
Duty: 1%-99%; accuracy +/-(1.0%+2).
Temperature:-20-1000C ; accuracy +/-(1.0%+2).
Counts: 6000.
Auto/manual range: yes.
Continuity: yes.
Diode: yes.
Data hold: yes.
NCV: yes.
Backlight: yes.
Flashlight: yes
DCA ZERO: yes.
Low power indicator: yes.
Auto power off: yes.
True RMS: yes.
VFD: yes.
INRUSH: yes.
MAX/MIN: yes.
REL: yes.
LowZ: yes.
Power supply: 3x 1.5V AAA batteries (not included).
Weight: 380g.
Size: 240x85x47mm.
Jaw size: 35x35x60mm.
Safety rating: EN61010-1, -2-030, EN61010-2-033, EN61326-1 CATIII 1000V, CATIV 600V.


Warranty: 24 months.
