DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC | NV821747

Code: NV821747

36.20€

5 in stock

DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC | NV821747, SPD Overvoltage Protection, SPD Overvoltage Protection DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC | NV821747, buy DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC | NV821747, cheap DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC | NV821747, best DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC | NV821747, online DC Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC | NV821747

SKU: 6942108715148 Category:
Shipping:
 Venipak courier 2-3 business days: 3.90 euro
 Venipak pickup 2-3 business days: 3.30 euro

Description

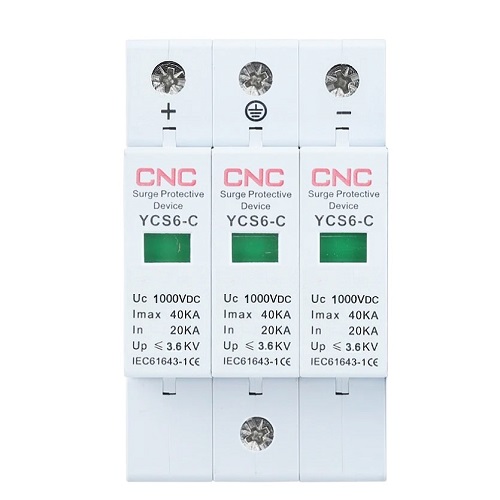

Surge Protection Device, 3P, Class C, 20-40 kA, 1000VDC

Features:
Widely used in induction thunder and influence of direct lightning or other transient overvoltage surge protection, to protect DC power system, photovoltaic system, wind power generation and other industrial DC power equipment safe to use.
Standards: IEC 61643-1, CE.


Specifications:
Number of contacts: 3.
Class: C.
Maximum continuous operating voltage (Uc): 1000V DC.
Maximum discharge current (Imax): 40 kA.
Nominal discharge current (In): 20 kA.
Voltage protection level (Up): < / = 3.6 kV. Response time: <25 ns. Frequency: 50/60 Hz. Operating temperature: -40°C to +85°C. Relative humidity (at 25°C): <95%. Installation: on DIN rail (35mm). Wires cross-section: 4-6 mm². Dimensions: 54 x 90 x 67 mm.

Warranty: 24 months.
