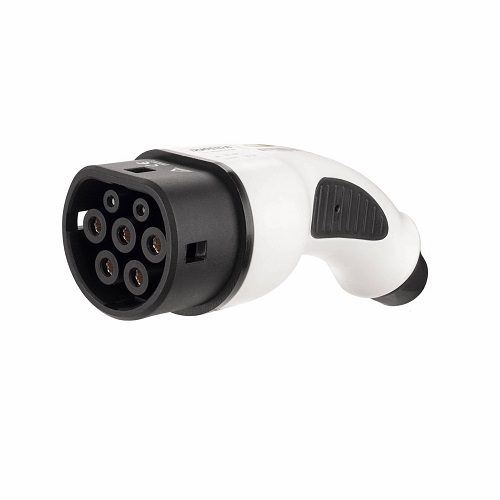

Electric Car Plug Duosida Type 2 (Female), 32A, 3-phase

Plug for electric car Type2, 32A (Female plug – Car side).
The electric car plug is designed to create a custom EV charger by selecting the desired cable length and connectors.


Specifications:
Plug type: IEC 62196, Type2 (European), Mennekes, 7 pins.
Rated current: 32A.
Rated voltage: 415V AC.
Maximum charging power: 22 kW.
Material: thermoplastic, flame retardant grade UL94 V-0.
Contacts: copper alloy, silver plating.
Cable specification: 5x6mm²+ 1×0.75mm² (three phase).
Number of contacts: 7 pins.
Safety class: IP44.
Operating temperature -30° to +50°C.
Certificates: CE, TUV.
Color: black / white.


Warranty: 24 months.
