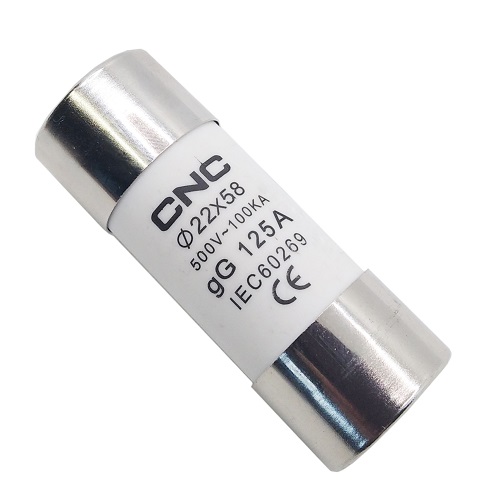

Fuse, 500V, gG 125A, 22x58mm

Fuse, 500V, gG 125A, 22×58


Features:
Type gG international standard fuse of full range protection of electrical installations, size 22×58 mm.
Designed to protect against both overload and short circuit.
For usage in a variety of low voltage systems, such as domestic and industrial circuits, it is rated to protect cables, wiring and equipment from excessive current.
Standard: IEC 60269.


Technical specifications:
Standard: gG (General Purpose + General Protection).
Rated voltage: 500V.
Conventional heating current (CHC): max. 125A.
Breaking capacity: 100kA.
Diameter: 22mm.
Length: 58mm.
Certificates: IEC 60269 CE.
