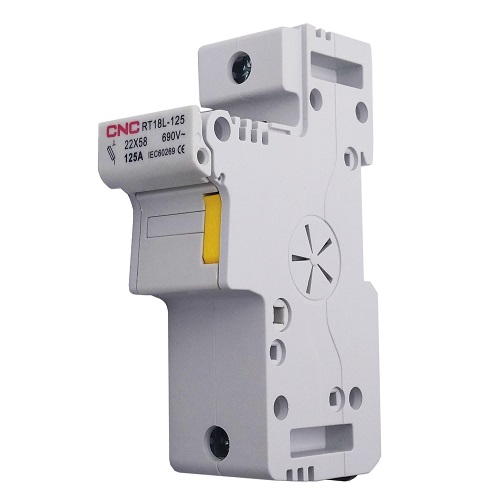

Fuse holder, 1P, 690V, 125A, DIN

Fuse holder, 1P, 690V, 125A, DIN rail mounting, suitable for 22×58 fuse


Features:
The holder is designed to hold, protect and mount fuses on a Din rail.
Suitable for gG standard fuse (with full breaking capacity range), size 22x58mm.
Circuit protection against overload and short circuit.
Standard: IEC 60269


Technical specifications:
Number of poles: 1.
Rated voltage: 690V.
Conventional heating current (CHC): max. 125A.
Suitable fuse: 22×58 mm.
Installation: on DIN rail, 35mm.
Dimensions: 126x78x36 mm.
Certificates: IEC 60269 CE.


Warranty: 24 months.
