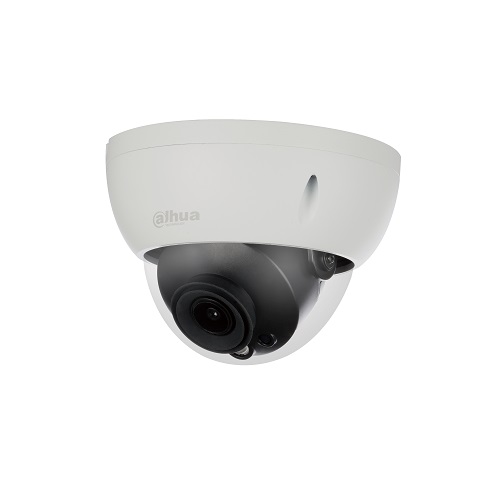

HD-CVI Camera HAC-HDBW2402R 2.8mm

SKU: HDBW2402R28

102€

12 in stock
Shipping:
 Venipak courier 1-3 business days: 7.90 euro
 Venipak pickup 1-3 business days: 3.30 euro
Monthly payment from 2.13 €
Minimum down payment from 0.00 €

Description

Camera
Image Sensor 1/1.8″ CMOS
Effective Pixels 2560(H)x1440(V), 4MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25s~1/100,000s NTSC: 1/30s~1/100,000s
Minimum Illumination 0.002Lux/F1.6, 30IRE, 0Lux IR on
S/N Ratio More than 65dB
IR Distance Up to 30m (98feet)
IR On/Off Control Auto / Manual
IR LEDs 1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length 2.8mm
Max Aperture F1.6
Angle of View H: 112.7° V: 60.2°
Focus Control Auto / Manual
Close Focus Distance 1300mm 51.18″
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI Definition Distance
Detect 25px/m (8px/ft) 2.8mm:58m(190ft)
Observe 63px/m (19px/ft) 2.8mm23m(76ft)
Recognize 125px/m (38px/ft) 2.8mm:12m(38ft)
Identify 250px/m (76px/ft) 2.8mm:6m(19ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Pan: 0° ~ 360° Tilt: 0° ~ 78° Rotation: 0° ~ 360°
Video
Resolution 4MP (2560×1440)
Frame Rate 25/30fps@4MP, 25/30fps@1080P
Video Output 1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/Night Auto (ICR) / Manual
OSD Menu Multi-language
BLC Mode BLC / HLC / WDR
WDR 120dB
Gain Control AGC
Noise Reduction 2D/3D
White Balance Auto / Manual
Smart IR Auto / Manual
Certifications
Certifications CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Interface
Audio Interface 1ch in
Eelectrical
Power Supply 12V DC ±30%
Power Consumption Max. 5.8W (12V DC, IR on)
Environmental
Operating Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH * Start up should be done at above -40°C (-40°F)
Storage Conditions -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal Resistance IP67 & IK10
Construction
Casing Aluminium
Dimensions ?122mmx88.9mm (?4.8″x3.5″)
Net Weight 0.50kg (1.10lb)
Gross Weight 0.62kg (1.37lb)
