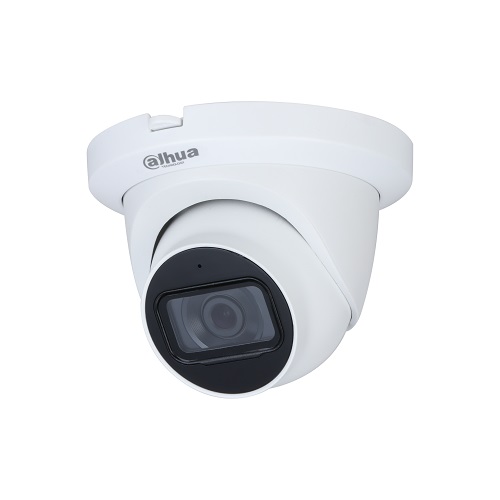

HD-CVI Camera HDW2241TLMQP-A 3.6mm

SKU: HDW2241TLM36

48.70€

35 in stock
Shipping:
 Venipak courier 1-3 business days: 7.90 euro
 Venipak pickup 1-3 business days: 3.30 euro

Description

Camera
Image Sensor 2MP CMOS
Max. Resolution 1920 (H) x 1080 (V)
Pixel 2MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.6, 30 IRE, 0 Lux IR on
Illumination Distance 30 m (98.4 ft)
Illuminator On/Off Control Auto; manual
Illuminator Number 2 (IR light)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed lens
Mount Type M12
Focal Length 3.6 mm
Max. Aperture F1.6
Field of View
3.6 mm: H: 86°; V: 46°; D: 101°
Iris Type Fixed iris
Close Focus Distance
3.6 mm: 1.1 m (3.6 ft)
DORI Distance Lens Detect Observe Recognize Identify
()
3.6 mm 53.7 m (176.2 ft) 21.5 m (70.5 ft) 10.7 m (35.1 ft) 5.4 m (17.7 ft)
Video
Frame Rate CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 x 576H;
NTSC: 960 x 480H
Resolution 1080p (1920 x 1080); 960H (960 x 576 / 960 x 480)
Day/Night Auto switch by ICR
BLC BLC/WDR/HLC
WDR 130 dB
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 3D NR
Smart IR Yes
Mirror Off/On
Privacy Masking Off/On (8 area, rectangle)
Certifications
Certifications CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video Output Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Audio Input One channel built-in mic
Power
Power Supply 12 V ±30% DC
Power Consumption Max 3.1 W (12 V DC, IR on)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Storage Temperature –40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Protection Grade IP67
Structure
Casing Metal throughout the whole casing
Camera Dimensions ?109.9 mm x 88.1 mm (?4.3″ x 3.5″)
Net Weight 0.34 kg (0.75 lb)
Gross Weight 0.45 kg (0.99 lb)
