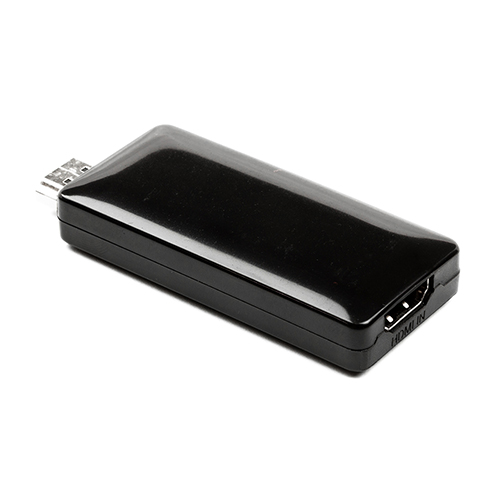

HDMI repeater up to 30m.

This HDMI repeater can realize signal enhancement by signal equalization and reorganization, so that the signal can be transmitted to longer distance. In addition, this product is also built-in IR-RX extension function, the infrared code be sent to splitter IR-TX terminal via HDMI cable to remotely control the signal source.


Features:
Support HDMI 2.0 version.
Support 3D video format.
Support high resolution up to: 3840×2160/60Hz.
Support highest rate of 6G and TMDS clock can be up to 600 MHz.
Support 8/10/12 bit deep color.
Built-in IR-RX extension function (via the IR-TX of HDMI splitter to receive the IR command).
Support AWG26 HDMI standard cable: when resolution is 3840×2160/30Hz, input distance up to 30 meters.
5V power supply. (Normally, the product does not require power supply).


Specifications:
HDMI version: HDMI 2.0.
HDMI resolution: up to 3840×2160/60Hz.
Support video format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD.
Max bandwidth: 600MHz.
Max baud rate: 6Gbps.
Input cable distance: (3840×2160/30Hz) <30m, AWG26 HDMI standard cable. Max working current: 300mA. Operating temperature range: -15C to +55C. Operating humidity range: 5% to 90%RH (No condensation). Dimension: 80x33x13mm.

Warranty: 24 months.
