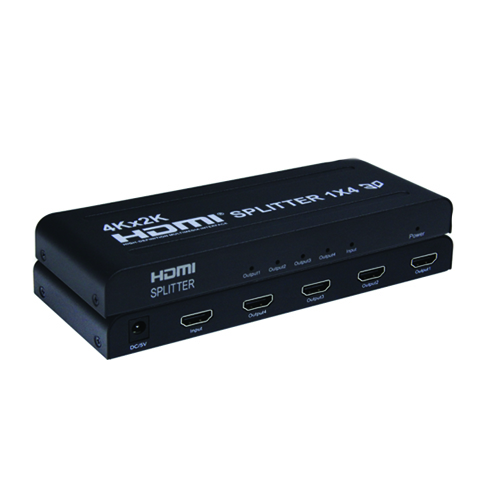

HDMI splitter 1×4, 4K

This HDMI 4K 1×4 splitter use a single HDMI source, accessing to multiple HDMI sinks. IT allows one HDMI device to be split easily to four HDMI compatible monitors or projectors. In addition, it can also be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of the HDMI splitter can be up to 3840×2160/30HZ.


Features:
Support HDMI 1.4b version.
Support 3D video format.
Support high resolution up to 3840×2160/30Hz.
Support highest rate of 3.4G ir TMDS clock can be up to 340MHz.
Support 8/10/12 bit deep color.
Support AWG26 HDMI standard cable: input up to 15 meters, output up to 15 meters. (when the resolution is 4K, input up to 8 meters, output up to 8 meters.)
Support one single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.


Specifications:
HDMI version: HDMI 1.4b.
HDMI resolution: up to 3840×2160/30Hz.
Support video format: 8/10/12 bit deep color; 3D.
Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 340MHz
Max baud rate: 3.4Gps.
Input cable distance: (1080p. resolution) <20m, (4K resolution) <15m AWG26 HDMI standard cable. Output cable distance: (1080p. resolution) <20m, (4K resolution) <15m AWG26 HDMI standard cable. Max working current: 500mA. Power adapter format: input AC (50HZ, 60HZ)) 100V-240V; output: DC5V (1A). Operating temperature range: -15 to +55. Dimensions: 178x67x23mm. Weight: 230g.

Warranty: 24 months.
