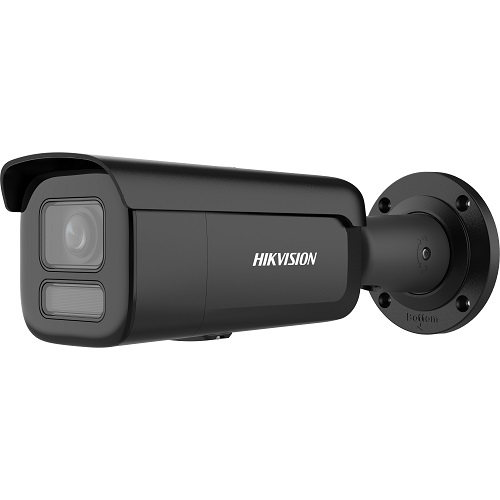

Hikvision DS-2CD2647G2HT-LIZS, Black

Description

4 MP Smart Hybrid Light with ColorVu Motorized Varifocal Bullet Network CameraFeaturesModel: DS-2CD2647G2HT-LIZS, blackHigh quality imaging with 4 MP resolutionSmart Hybrid Light: advanced technology with long rangeClear imaging against strong back light due to 130 dB WDR technologyEfficient H.265+ compression technologyFocus on human and vehicle targets classification based on deep learningMotorized varifocal lens for easy installation and monitoringWater and dust resistant (IP67)SpecificationsCamera• Image Sensor: 1/1.8″ Progressive Scan CMOS• Max. Resolution: 2688 × 1520• Min. Illumination: Color: 0.0008 Lux @ (F1.2, AGC ON),0 Lux with light• Shutter Time: 1/3 s to 1/100,000 s• Day & Night: IR cut filter• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°Lens• Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm• Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°• Lens Mount: Integrated• Iris Type: Fixed• Aperture: F1.2• Depth of Field: 1 m to infinite• DORI Wide: D: 60.0m, O: 23.8 m, R: 12.0 m, I: 6.0 mTele: D: 149 m, O: 59.1 m, R: 29.8 m, I: 14.9 mIlluminator• Supplement Light Type : IR, White Light• Supplement Light Range Up to 60 m• Smart Supplement Light Yes• IR Wavelength 850 nmVideo• Main Stream:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)• Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)• Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.• Video Compression:Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264 *Third stream is supported under certain settings.• Video Bit Rate 32 Kbps to 8 Mbps• H.264 Type Baseline Profile, Main Profile, High Profile• H.265 Type Main Profile• Bit Rate Control CBR, VBR• Scalable Video Coding (SVC) H.264 and H.265 encoding• Region of Interest (ROI) 1 fixed region for main stream and sub-streamAudio• Environment Noise Filtering: Yes• Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC• Audio Bit Rate: 64 Kbps (G.711ulaw/ G.711alaw)/ 16 Kbps (G.722.1)/ 16 Kbps (G.726)/ 32 to 192 Kbps (MP2L2)/ 8 to 320 Kbps (MP3)/ 16 to 64 Kbps (AAC-LC64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)• Audio Sampling Rate: 8 kHz/ 16 kHz/ 32 kHz/ 44.1 kHz/ 48 kHzNetwork• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP• Simultaneous Live View: Up to 6 channels• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP• User/Host: Up to 32 users; 3 user levels: administrator, operator, and user• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)• Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)• Client: iVMS-4200, Hik-Connect, Hik-Central• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image• Image Parameters Switch: yes• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser• Day/Night Switch: Day,Night, Auto, Schedule• Image Enhancement: BLC, HLC, 3D DNR• Wide Dynamic Range (WDR) 130 dB• SNR > /= 52 dB• Privacy Mask: 4 programmable polygon privacy masksInterface• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB• Audio: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KOhm, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100Ohm, interface type: non-equilibrium• Alarm: 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)• Reset Key: YesEvent• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception• Linkage: Upload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output• Smart Event: Scene change detectionDeep Learning Function• Face Capture: Yes• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle)General• Power: 12 VDC ± 25%, 1.21 A, max. 14.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W• Material: Front cover: Metal, body: Metal, bracket: Metal• Dimension: 298 mm × 97.9 mm × 95.7 mm (11.8″ × 3.9″ × 3.8″)• Package Dimension: 386 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)• Weight Approx. 1085 g (2.4 lb.)• With Package Weight Approx. 1639 g (3.6 lb.)• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianApproval• EMC: CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014• Safety:UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017• Environment: CE-RoHS: 2011/65/EU• Protection IP67: IEC 60529-2013
