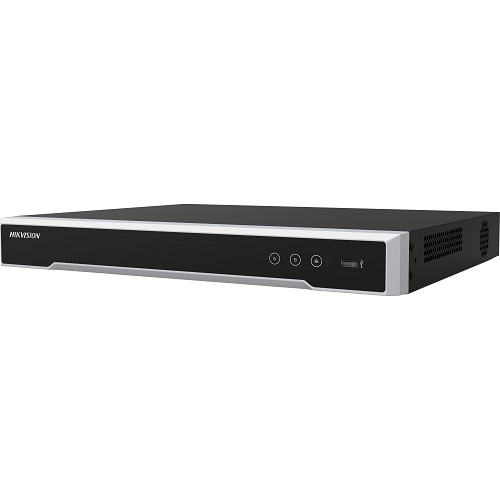

Hikvision NVR DS-7608NI-M2

Description

8-ch 1U 8K NVRFeatures:Model: Hikvision DS-7608NI-M2H.265+/H.265/H.264+/H.264 video formatsUp to 8-ch IP camera inputsUp to 8-ch@8 MP decoding capacityUp to 128 Mbps incoming bandwidthUp to 8-ch IP speakers can be connectedSpecifications:Video and Audio• IP Video Input: 8-ch, Up to 32 MP resolution*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.• Incoming Bandwidth: 128 Mbps• Outgoing Bandwidth: 256 Mbps• HDMI Output: 8K (7680 x 4320)/30Hz, 4K (3840 x 2160)/60Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz• VGA Output: 1920 x 1080/60 Hz• Video Output Mode: HDMI/VGA independent output• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ohm), resolution: PAL: 704 x 576, NTSC: 704 x 480• Audio Output: 1-ch, RCA (Linear, 1 Kiloohm)• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 Kiloohm, using the audio input)Decoding• Decoding Format: H.265/H.265+/H.264+/H.264• Recording Resolution: 32 MP/ 24 MP/ 12 MP/ 8 MP/ 6 MP/ 5 MP/ 4 MP/ 3 MP/ 1080p/ UXGA/ 720p/ VGA/ 4CIF/ DCIF/ 2CIF/ CIF/ QCIF*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.• Synchronous Playback: 8-ch• Decoding Capability: 2-ch@32 MP (30 fps)+2-ch@8MP(30fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)• Dual-Stream Recording: support • Stream Type: Video, Video & Audio• Audio Compression: G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2Network• Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface• Remote Connection: 128• Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP• Camera Access Protocol: ONVIF(Version 2.5), RTSPAuxiliary Interface• SATA: 2 SATA interfaces• Capacity: Up to 16 TB capacity for each disk• USB Interface: Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0• Alarm In/Out: 4/1General• Power Supply: 12 VDC, 3.33 A• Consumption: < /= 15 W (without HDD)• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)• Working Humidity: 10% to 90%• Dimension (W x D x H): 385 x 315 x 52 mm (15.2" x 12.4" x 2.0")• Weight: < /= 3 kg (without HDD, 2.2 lb.)Certification• CE: EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020• Obtained Certification: CE, FCC, RoHS, REACH
