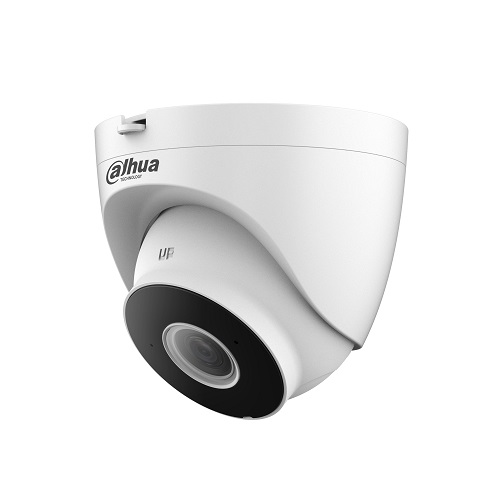

IP network camera 4MP HDW1430DT-STW 2.8mm

SKU: HDW1430DTSTW

76€

Out of stock
Shipping:
 Venipak courier 1-3 business days: 7.90 euro
 Venipak pickup 1-3 business days: 3.30 euro
Monthly payment from 1.59 €
Minimum down payment from 0.00 €

Description

Camera
Image Sensor 1/3″ CMOS
Max. Resolution 2560 (H) × 1440 (V)
ROM 16 MB
RAM 64 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.03 Lux@F2.0 (Color, 30 IRE) 0.003 Lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.43 ft)
Illuminator On/Off Control Auto; Manual
Illuminator Number 1 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm
Max. Aperture F2.0
Field of View 2.8 mm: Horizontal: 90°; Vertical: 50°; Diagonal: 107°
Iris Control Fixed
Close Focus Distance 2.8 mm: 1.0 m (3.28 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 68.0 m (223.10 ft) 27.2 m (89.24 ft) 13.6 m (44.62 ft) 6.8 m (22.31 ft)
Video
Video Compression H.264B; H.264; H.264H; H.265
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream:
2560 × 1440 (1–20 fps)
Sub stream:
704 × 576 (1–25 fps)
704 × 480 (1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 2 streams
Resolution 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720)
Bit Rate Control CBR/VBR
Video Bit Rate H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Smart Illumination Yes
Image Rotation 0°/180°
Mirror Yes
Audio
Built-in MIC Yes
Built-in Speaker Yes
Audio Compression G.711a; G.711Mu
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; intensity change; SMD (human)
Network
Network Port RJ-45 (10/100 Base-T)
Wi-Fi IEEE802.11b/g/n 2.4–2.4835 GHz; 2.4 G
Wireless Range Up to 120 m (The performance varies based on actual environment)
SDK and API Yes
Cyber Security Video encryption; configuration encryption; Digest; WSSE; account lockout; security logs; generation and importing of X.509 certification; HTTPS; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP
Interoperability ONVIF (Profile S/Profile T); CGI; P2P
User/Host 6 (Total bandwidth: 36 M)
Storage Micro SD card (support max. 256 GB)
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client iOS; Android
Certification
Certifications CE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; CE-RED:Radio Equipment Directive 2014/53/EU; FCC:47 CFR FCC Part 15, Subpart B; FCC ID:FCC PART 15C
Power
Power Supply 12 VDC
Power Consumption Basic: 2 W (12 VDC) Max. (H.265 + IR intensity): 6.1 W (12 VDC)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ? 95%
Storage Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Protection IP67
Structure
Casing Inner core: Metal + Plastic Cover: Plastic
Product Dimensions Ø109.9 mm × 102.2 mm (Ø4.33″ × 4.02″)
Net Weight 352 g (0.77 lb)
Gross Weight 530 g (1.17 lb)
