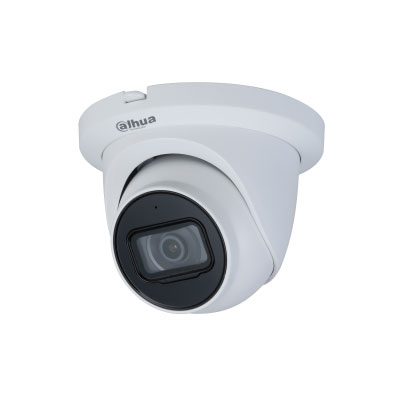

IP network camera Full HD HDW2231T-AS 3.6

69€

6939554981715

1 in stock
  • Visa Card
  • MasterCard
SKU: HDW2231TAS36 Category:
Shipping:
  Free Shipping 1-3 business days

Description

Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 (H) × 1080 (V)
ROM 128 MB
RAM 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.002 Lux@F1.6 (Color, 30 IRE)
0.0002 Lux@F1.6 (B/W, 30 IRE)
0 Lux (Illuminator on)
S/N Ratio > 56 dB
Illumination Distance 30 m (98.43 ft) (IR)
Illuminator On/Off Control Auto; manual
Illuminator Number 2 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 3.6 mm
Max. Aperture
3.6 mm: F1.6
Field of View
3.6 mm: Horizontal: 88°; Vertical: 44°; Diagonal: 105°
Iris Control Fixed
Close Focus Distance
3.6 mm: 1.3 m (4.27 ft)
DORI Distance Lens Detect Observe Recognize Identify
3.6 mm 58.9 m (193.24 ft) 23.6 m (77.43 ft) 11.8 m (38.71 ft) 5.9 m (19.36 ft)
Smart Event
IVS Tripwire; intrusion
Video
Video Compression H.265; H.264; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
Video Frame Rate Main stream:
1920 × 1080@1–25/30 fps
Sub stream:
704 × 576@1–25 fps
704 × 480@1–30 fps
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity
Stream Capability 2 streams
Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Illumination Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)
Mirror Yes
Privacy Masking 4 areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; G.726; PCM
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio abnormality; voltage detection; security exception
Network
Network Port RJ-45 (10/100 Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 48 M)
Storage FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser IE
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Mobile Client IOS; Android
Certification
Certifications CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
Power
Power Supply 12 V DC/PoE (802.3af)
Power Consumption Basic: 1.8 W (12 V DC); 2.4 W (PoE)
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 5.5 W (12 V DC); 6.1 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ? 95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67
Structure
Casing Inner core: Metal
Cover: Metal
Decoration ring: Plastic
Product Dimensions 99.1 mm × ?121.9 mm (3.90″ × ?4.80″)
Net Weight 0.48 kg (1.06 lb)
Gross Weight 0.65 kg (1.43 lb)
