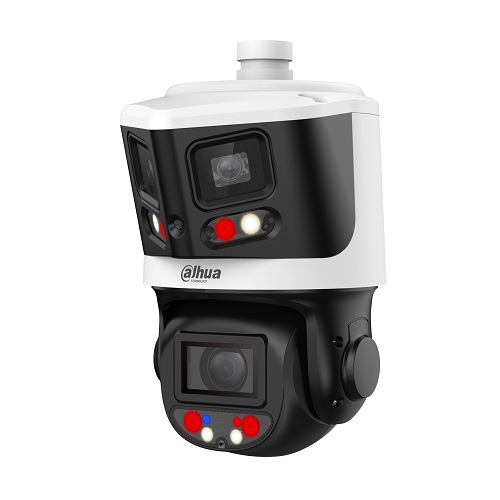

IP PTZ kam. 8MP+4MP SDT3E410-8P-MB-A-PV1

Camera

Image Sensor

Overview channel: 1/2.8″ CMOS;

Detail channel: 1/2.8″ CMOS

Pixel

Overview channel: 8 MP;

Detail channel: 4 MP

Max. Resolution

Overview channel: 5376 (H) x 1520 (V);

Detail channel: 2560 (H) x 1440 (V)

ROM

Overview channel: 4 GB;

Detail channel: 4 GB

RAM

Overview channel: 2 GB;

Detail channel: 1GB

Electronic Shutter Speed

Overview channel: 1 s–1/100,000 s;

Detail channel: 1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Overview channel:
0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)
Detail channel:
1 s–1/30,000 s
0.005 lux@F1.6 (Color, 30 IRE);
0.0005 lux@F1.6 (B/W, 30 IRE);
0 lux (illuminator on)

Illumination Distance

Overview channel:
30 m (98.43 ft) (IR);
30 m (98.43 ft) (white light)
Detail channel:
70 m (229.66 ft);
30 m (98.43 ft) (white light)

Illuminator On/Off Control

Overview channel: Manual; Auto; Off
Detail channel: Zoom Prio; Manual; Auto; Off

Illuminator Number

Overview channel: 2 (IR light); 2 (white light);

Detail channel: 2 (Dual light fusion); 2 (IR light)

Lens

Focal Length

Overview channel: 2.8 mm;

Detail channel: 4 mm–40 mm

Max. Aperture

Overview channel: F1.6;

Detail channel: F1.6-F3.6

Field of View

Overview channel: H: 180°; V: 47°;
Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8°

Optical Zoom

Overview channel: NA;

Detail channel: 10x

Focus Control

Auto; manual; semi-auto

Close Focus Distance

Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft)

Iris Control

Overview channel: NA;

Detail channel: NA

DORI Distance

Detect

Observe

Recognize

Identify

500 m

(1640.42 ft)

197.5 m

(647.97 ft)

100 m

(328.08 ft)

50 m

(164.04 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 345°;
Tilt: -10° to +90°

Manual Control Speed

Overview channel: NA;

Detail channel: H: 0.1°–80°/s; V: 0.1°–50°/s

Preset Speed

H: 80°/s; V: 50°/s

Preset

300

Power-off Memory

Yes

Idle Motion

Preset

Intelligence

IVS (Perimeter Protection)

Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people)

Face Detection

Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots.

SMD

SMD 4.0

SMD

Yes

Active Deterrence

Light Warning

Red and blue light warning;
Flash duration: 5 s–30 s;
Flash frequency: high, medium, low

Sound Warning

Offers 11 sound alarm and 10 custom sound alarms can be imported.
Sound can be set from 0%–100%.
Play times can be set from 1-10.

Video

Video Compression

H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1)

Streaming Capability

3 streams

Resolution

Overview channel: 5376 x 1520; 26886 x 752; 1080p (1920 x 1080); 720p (1280 x 720); 1344 x 368; D1 (704 x 576/704 x 480); CIF (352 x 288/352 x 240);
Detail channel: 2560 x 1440; 3M (2304 x 1296); 1080p (1920 x 1080); 1280 x 960 (1.3M); 720p (1280 x 720); D1 (704 x 576/704 x 480); CIF (352 x 288/352 x 240)

Video Frame Rate

Overview channel:

Main stream: 5376 x 1520 @(1–25/30 fps)
Sub stream 1: 1344 x 368/D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 2688 x 752/1080p/1.3M/720p @(1–25/30 fps);
Detail channel:

Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@ (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

Overview channel: H264: 128 kbps–16,384 kbps
H265: 51 kbps–13,312 kbps;
Detail channel: H264: 96 kbps–16,384 kbps
H265: 38 kbps–10,240 kbps

Day/Night

Overview channel: Auto; Color; B/W;
Detail channel: Auto; Color; B/W; Electronic

BLC

Yes

WDR

Overview channel: DWDR
Detail channel: 120 dB

HLC

Yes

White Balance

Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Overview channel: Auto; manual; gain prio
Detail channel: Auto; manual; gain prio

Noise Reduction

Overview channel: 2D NR; 3D NR
Detail channel: 2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Image Stabilization

Overview channel: NA
Detail channel: Electronic Image Stabilization (EIS)

Defog

Overview channel: Electronic
Detail channel: Electronic

Digital Zoom

Overview channel: NA
Detail channel: 16x

Image Rotation

Overview channel: NA
Detail channel: 180°

S/N Ratio

Overview channel: ?55dB
Detail channel: ?55dB

Audio

Audio Compression

Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729;
Detail channel: NA

Network

Network Port

RJ-45 (100 Base-T)

Network Protocol

FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

web5.0:
IE 9 and later versions;
Chrome 41 and later versions;
Firefox 50 and later versions;
Safari 10 and later versions

Management Software

DMSS; DSS Pro

Mobile Client

iOS; Android

Certification

Certifications

CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471

Port

Audio Input

1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))

Audio Output

1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))

Alarm Input

1 (on-off value input: 0–5 VDC)

Alarm Output

1 channel

Alarm Linkage

Capture; recording; send email; preset; alarm digital output; audio; warning light

Alarm Event

Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Power

Power Supply

12 VDC, 3 A ± 10%
PoE+(802.3at)

Power Consumption

Basic: 12 W;
Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

?95%

Protection
