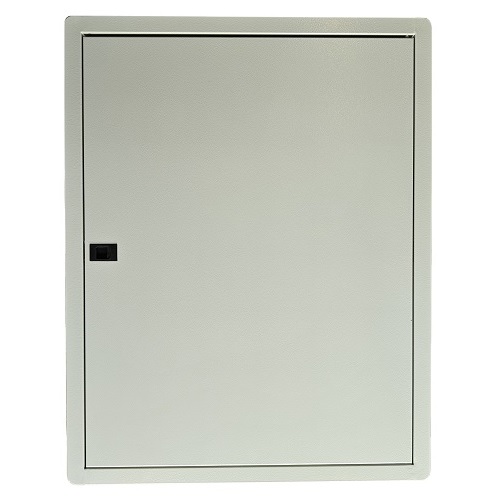

MCB Box TIBOX 585x750x115mm; 4x24P, Flush Mount, indoors use

MCB box 585x750x115mm, 4 DIN x24P, flush type, metal, IP54 (indoors use). Flush mounting metal enclosure with 4 DIN rails is specially designed for the installation of circuit breakers.


Features:
The metal distribution box is intended for MCB installation in residential or industrial premises. It can assemble 24 contacts of breakers each row, the frame with knock-outs on all sides allows you to neatly hide the wires.
Safety class IP54 (resistance to moisture and dust).
The package includes box body, door and lock system, DIN rails and front frame with cutouts.
Body surface: epoxy polyester powder coating textured finish, color RAL 7035 – light gray.


Technical specifications:
Number of breakers: 4 rows x 24 P.
Body material: sheet steel.
Installation: flush mount.
Safety class: IP54.
Color: RAL 7035 light gray.
Height: 750mm.
Width: 585mm
Depth: 115mm.
Wall and door thickness: 1.2mm.
