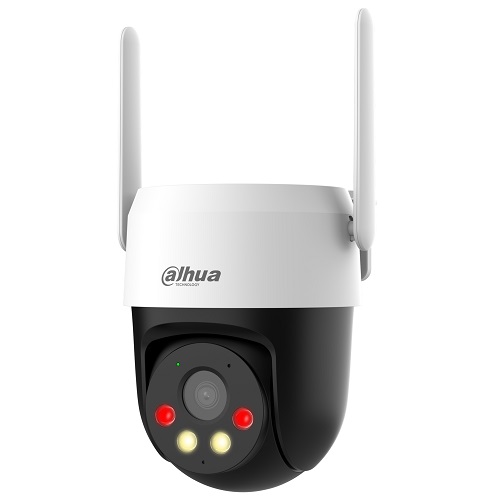

Mini 4 Megapixel HD Network PTZ Dome 4G Camera P5AE-PV-4G

Camera

Image Sensor

1/2.8″ CMOS

Max. Resolution

2880 (H) x 1620 (V)

Illumination Distance

30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR)

Electronic Shutter Speed

1/25 s–1/100,000 s

Illuminator Number

2 (IR light); 2 (Warm light)

Lens

Focal Length

4.0 mm

Max. Aperture

F1.6

Field of View

H: 81.27°; V: 47.73°; D: 94.41°

Iris Control

Fixed

PTZ

Pan/Tilt Range

“Pan: 0° to 345°
Tilt: 0° to +90°”

Smart Event

IVS

Tripwire and intrusion

Human Detection

Human detection; Auto-tracking

Vehicle Detection

Yes

Intelligence

SMD

SMD 3.0

Video

Video Compression

Smart H.265+;H.265;Smart H.264+;
H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)

Video Frame Rate

Main stream: 5M/1080p/720p/640 x 360@(1–25/30 fps)
Sub stream 1: D1/VGA/CIF@(1–25/30 fps)

Video Bit Rate

H264: 64 – 8192 kbps H265: 25 – 6400 kbps

Day/Night

Auto (ICR); Color/B/W

WDR

DWDR

Motion Detection

Yes

Image Rotation

180°

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726

Built-in MIC

Yes

Built-in Speaker

Yes

Network

Wireless Carrier Frequency Band

EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66

Max. Transmission Power

4G:Power class3:23dBm±2dB

Storage

Micro SD card (support max. 256 GB);

Management Software

DMSS

Mobile Client

iOS; Android

General

Certifications

CE

Power Supply

12 VDC, 1 A ± 10%

Power Consumption

Basic: 3 W
Max: 9 W (illuminator + PTZ)

Power Adapter

Included

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

?95%

Protection

TVS 2000 V lightning proof;
surge protection;
voltage transient protection;
Waterproof and Dustproof

Camera Button

Reset button

Casing Material

Plastic

Product Dimensions

140.5 mm x Ø111.0 mm (5.53″ x Ø4.37″)

Net Weight

0.5 kg (1.10 lb)
