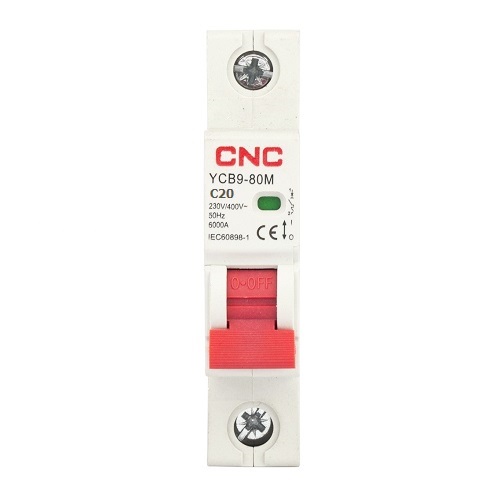

Miniature Circuit Breaker, 1P, 20A, Class C, 6kA

Description

Miniature Circuit Breaker, 1P, 20A, Class C, 6kA Features: Protection against overload. Short circuit protection.Anti-mistake contact terminal block.Flame retardant, high temperature resistance and impact resistance.Contact position indication (red indicated closed, green indicates opened).
Specifications:Number of contacts: 1.Rated current (In): 20 A.Class: C.Rated voltage (Ue): AC 230/400 V.Insulation voltage (Ui): 500 V.Rated frequency: 50/60 Hz.Rated breaking capacity (Icu): 6000 A.Rated impulse withstand voltage (Uimp): 6000 V.Mechanical life: 20000 times.Electrical life: 8000 times.Safety class: IP20.Terminal connection type: cable / pin-type busbar.Wire/busbar cross-sectional area: up to 25mm² / 18-3 AWG.Connection: from top and bottom.Installation: on DIN rail EN 60715 (35mm) by means of fast clip device.Operating temperature: -5°C~+40°C (with daily average <35°C).Storage temperature: -25°C~+70°C.Dimensions: 85.5 x 78.8 x 18 mm.Standards: IEC 60898-1 / EN 60898-1.
Warranty: 24 months.
