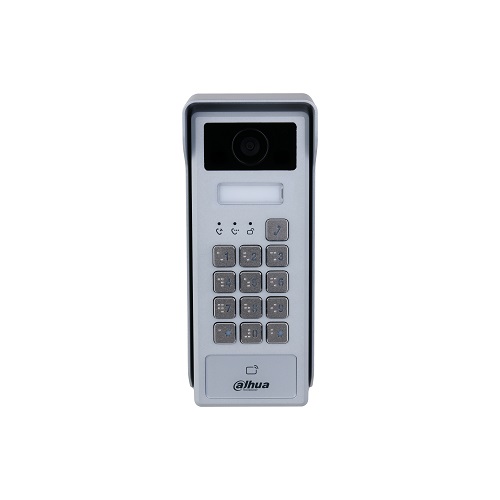

Outdoor Station for villa VTO2023S

System

Main Processor

Embedded Processor

Button Type

Mechanical

Basic

Camera

1/2.8″ 2 MP CMOS HDR Camera

Field of View

H: 84°; V: 43°; D: 99°

WDR

DWDR

Noise Reduction

3D NR

Video Resolution

P: 960 (H) × 576 (V)
N: 960 (H) × 480 (V)

Video Frame Rate

P: 25 fps
N: 30 fps

Light Compensation

Auto IR

Day/Night

Auto(ICR)/Color/B/W

Audio Input

1 channel

Audio Output

Built-in speaker

Audio Mode

Two-way audio (half–duplex)

Function

Unlock Mode

IC card; password; remote unlock

Card Type

IC card

Leave Videos

Yes (SD card inserted in VTH is needed)

Performance

Card Reading Distance

0 cm-2 cm

Issue Card Locally

Yes

Casing Material

Aluminum alloy

Capacity

Card Capacity

100

Port

RS-485

1

Alarm Output

1

Power Output

1 (12 V, 500 mA)

Exit Button

1

Door Status Detection

1

Lock Control

1

Alarm

Tamper Alarm

Yes

General

Unlock Password Mode

Personal password

Appearance Color

Silvery white

Power Supply

2-wire Controller

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE

Accessory

Sold separately: 2-wire controller

Product Dimensions

205.8 mm × 85.3 mm × 46.5 mm (8.10″ × 3.36″ × 1.83″)

Protection

IP65 IK08

Operating Temperature

–40 °C to +60°C (–40 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Environment

Outdoor

Operating Altitude

0 m–3000 m (0 ft – 9842.52 ft)

Power Consumption

? 2 W (standby), ? 12 W (working)

Gross Weight

978 g (2.16 lb)

Anti-corrosion Level

Basic Protection
