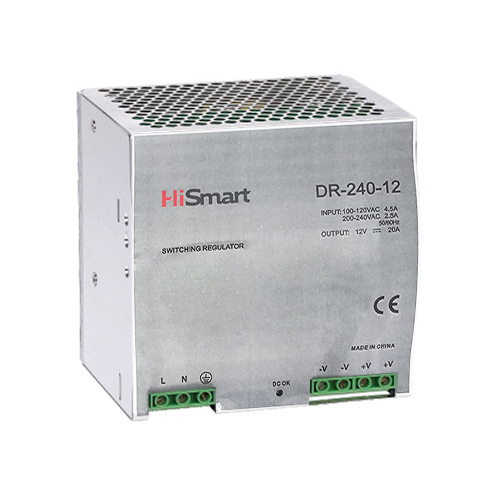

Power supply 12V, 20A, 240W, DIN

Power supply 12V, 20A, 240W, DIN

48.70

9990000700530

Availability: 5 in stock

SKU: DR-240-12
Barcode: 9990000700530
Category:
Shipping:
 Venipak courier 1-3 business days: 4.50 euro
 Venipak pickup 1-3 business days: 3.00 euro

Power supply 12V, 20A, 240W, DIN.
Features:Power supply operating in pulse mode. Can be installed on DIN rail: TS-35/7.5 or TS-35/15.Cooling by free air convection.Protections: short circuit / over temperature / overload / over voltage.Small volume, low weight, high efficiency.
Specifications:Type: switching power supply.Input range AC: 95-264V. Frequency 47-63Hz.Output voltage DC: 12V.DC voltage adjustable range: -9% /+10%.Rated current: 20A.Rated power: 240W.AC current: 4.5A/115V, 2.5A/230V.Ripple and noise: 120mV p-p.Effieciency: 86%.Leakage current: <3.5mA / 240V AC.Working temperature: -10°C~+60°C.Working humidity: 20%-90%RH.Dimension: 125.5x125.2x100mm.Weight: 1.13kg.
Warranty: 24 months.
