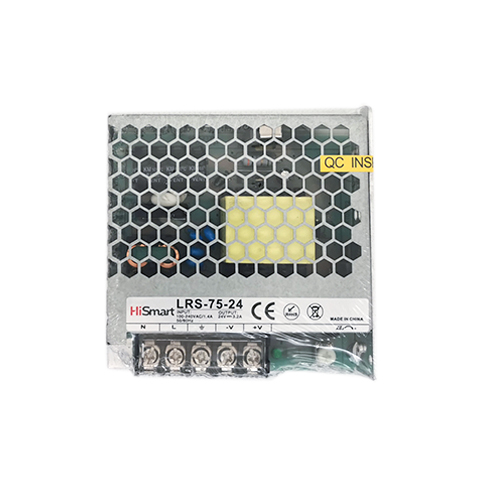

Power supply 24V, 3.2A, 75W

Power supply 24V, 3.2A, 75W.


Features:
Ultra thin type 1U profile switching power supply operating in pulse mode.
Small volume, low weight, high efficiency.
Cooling by free air convection.
Protections: short circuit / overload / over voltage.
No load consumption: <0.5W. Operating altitude up to 5000 meters.

Specifications:
Type: switching power supply.
Input range AC: 90-264V. Frequency 47-63Hz.
Output voltage DC: 24V.
DC voltage adjustable range: ±10%.
Rated current: 3.2A.
Rated power: 76.8W.
AC current: 1.4A/115V, 0.85A/230V.
Ripple and noise: 120mV p-p.
Effieciency: 90%.
Leakage current: <0.75mA / 240V AC. MBTF: min 660000 hours. Working temperature: -30°C~+70°C. Working humidity: 20%-90%RH. Dimension: 99x97x30mm. Weight: 0.25kg.

Warranty: 24 months.
