Power supply 48V, 120W, DIN | DR-120-48

Code: DR-120-48

72€

5 in stock

Power supply 48V, 120W, DIN | DR-120-48, Power supply PoE / 48V, Power supply PoE / 48V Power supply 48V, 120W, DIN | DR-120-48, buy Power supply 48V, 120W, DIN | DR-120-48, cheap Power supply 48V, 120W, DIN | DR-120-48, best Power supply 48V, 120W, DIN | DR-120-48, online Power supply 48V, 120W, DIN | DR-120-48

SKU: 9990000700554 Category:
Shipping:
 Venipak courier 2-3 business days: 3.90 euro
 Venipak pickup 2-3 business days: 3.30 euro

Description

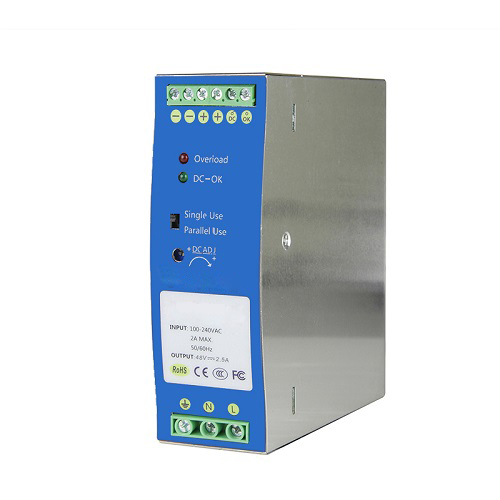

Power supply 48V, 2.5A, 120W, DIN.
Features:Economical slim 60W DIN Rail industrial power supply. Can be installed on DIN rails: TS-35/7.5 or TS-35/15.Cooling by free air convection. Operation at the ambient temperature between -30°C to 70°C.Protections: short circuit / overload / over voltage.High efficiency, durability, reliability, narrow profile.Meets the EU standards EMC for harmonic current emissions EN61000-3-2.
&#x4;Specifications:&#x4;Input range AC: 90-264V. Frequency 47-63Hz.&#x4;Output voltage DC: 48V.&#x4;DC voltage adjustable range: 47 ~ 56V.&#x4;Rated current: 2.5A.&#x4;Rated power: 120W.&#x4;AC current: 2.2A/115V, 1.1A/230V.&#x4;Ripple and noise: 100mV p-p.&#x4;Efficiency: >91%.&#x4;Leakage current: <0.25mA / 264V AC.&#x4;Operating temperature: from -30°C to + 70°C.&#x4;Operating humidity: 20% -95% RH.&#x4;Dimension: 135x121x40mm.&#x4;Certificates: RoHS, CE.&#x4;
&#x4;Warranty: 24 months.&#x4;
