Power Supply|CHIEFTEC|ATX|PC|200 – 240 V|600 W|APB-600B8

Code: 753263077813

38.50€

3 in stock

Power Supply|CHIEFTEC|ATX|PC|200 - 240 V|600 W|APB-600B8, Desktop Computer PSU, Desktop Computer PSU Power Supply|CHIEFTEC|ATX|PC|200 - 240 V|600 W|APB-600B8, buy Power Supply|CHIEFTEC|ATX|PC|200 - 240 V|600 W|APB-600B8, cheap Power Supply|CHIEFTEC|ATX|PC|200 - 240 V|600 W|APB-600B8, best Power Supply|CHIEFTEC|ATX|PC|200 - 240 V|600 W|APB-600B8, online Power Supply|CHIEFTEC|ATX|PC|200 - 240 V|600 W|APB-600B8

SKU: 1382015 Category: Brand:
Shipping:
 Omniva pickup 2-3 business days: 3.50 euro
 Courier 2-3 business days: 6.00 euro


Description

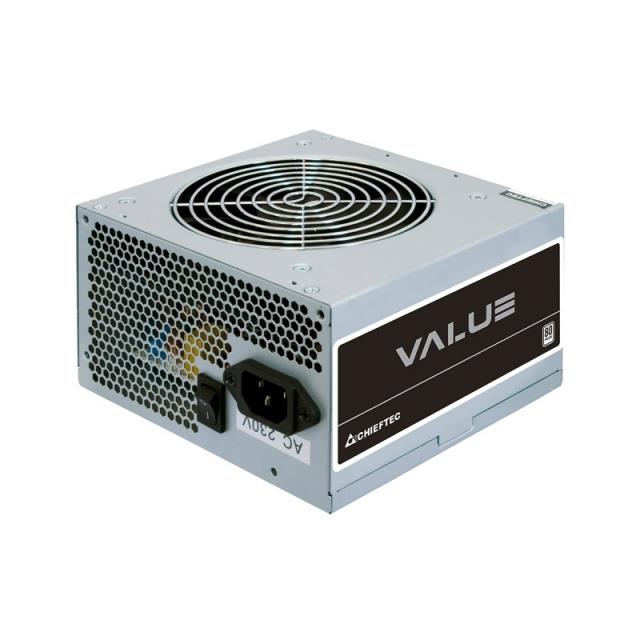

Chieftec Value APB-600B8

The new VALUE SERIES offers both quality and 80 PLUS 230V EU efficiency at a highly competitive pricing. Equipped with a vast amount of required connectors, long native cables and a silent running fan with installed thermal board, the PSU runs quietly on full load and provides REAL POWER, thereby providing all security features. Certified by CE, CB, EAC, TÜV and amongst many others, it’s the VALUE choice!

SummaryChieftec Value APB-600B8. Total power: 600 W, AC input voltage: 200 - 240 V, Peak power: 600 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 55 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS. Product colour: Steel, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: CE, RoHS
Vendor Homepagehttps://www.chieftec.eu/products-detail/181/VALUE_SERIES/526/APB-600B8
Category CodePSU
CnCode85044095
Unit Box Height0.09
Unit Box Length0.22
Unit Box Width0.15
Total power600
Peak power600
AC input voltage200 - 240
AC input frequency47 - 63
Maximum input current (@220V)4.5
Combined power (+3.3V)120
Combined power (+12V)552
Combined power (+5V)120
Combined power (-12V)3.6
Combined power (+5Vsb)12.5
Max output current (+3.3V)20
Max output current (+12V1)46
Max output current (+5V)20
Max output current (-12V)0.3
Max output current (+5Vsb)2.5
Motherboard power connector20+4 pin ATX
Motherboard power cable length550
Number of SATA power connectors4
SATA power cable length150/500
Peripheral (Molex) power connectors (4-pin)2
Peripheral (Molex) power cable length150/500
EPS power connector (8-pin)No
EPS power connector (4+4 pin)Yes
PCI Express power connectors (6+2 pin)2
Floppy disk drive cable length150
Floppy disk drive connectorYes
Connector(s)20+4 PIN ATX 1 8 PIN EPS (4+4) 1 8 PIN PCIe (6+2) 2 SATA 4 MOLEX/FLOPPY 2/1
Cabling typeNon-Modular
