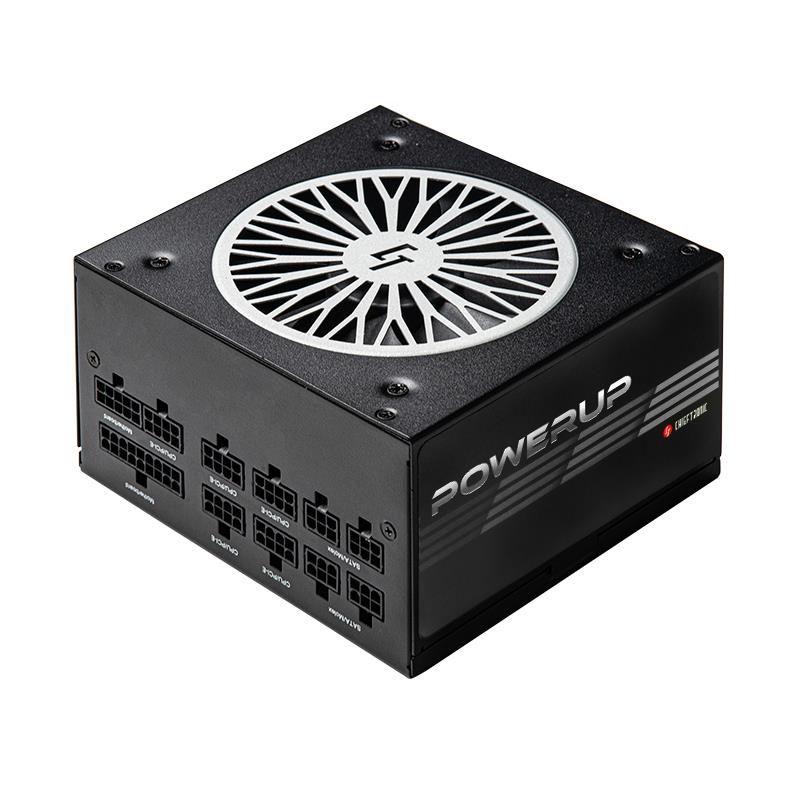

Power Supply|CHIEFTEC|Chieftronic PowerUp|ATX|PC|100 – 240 V|650 W|GPX-650FC

Code: 753263077189

76 €

74 in stock

Power Supply|CHIEFTEC|Chieftronic PowerUp|ATX|PC|100 - 240 V|650 W|GPX-650FC, Desktop Computer PSU, Desktop Computer PSU Power Supply|CHIEFTEC|Chieftronic PowerUp|ATX|PC|100 - 240 V|650 W|GPX-650FC, buy Power Supply|CHIEFTEC|Chieftronic PowerUp|ATX|PC|100 - 240 V|650 W|GPX-650FC, cheap Power Supply|CHIEFTEC|Chieftronic PowerUp|ATX|PC|100 - 240 V|650 W|GPX-650FC, best Power Supply|CHIEFTEC|Chieftronic PowerUp|ATX|PC|100 - 240 V|650 W|GPX-650FC, online Power Supply|CHIEFTEC|Chieftronic PowerUp|ATX|PC|100 - 240 V|650 W|GPX-650FC

SKU: 1390640 Category: Brand:
Shipping:
 Omniva pickup 2-3 business days: 3.50 euro
 Courier 2-3 business days: 6.00 euro


Description

Блок живлення ATX 2.53 Chieftec PowerUP 650W 80 PLUS Gold Black (GPX-650FC)

With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.

A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very large gaming cases.

  • 80 PLUS® Gold certified efficiency
  • Fully modular cable management
  • Full-bridge LLC converter with DC-to-DC technology
  • Low ripple and tight voltage regulation

SummaryChieftec PowerUp Chieftronic. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: 80PLUS Gold
Vendor Homepagehttps://www.chieftec.eu/products-detail/326/PowerUP_SERIES/328/GPX-650FC
Category CodePSU
CnCode85044095
Unit Box Height0.22
Unit Box Length0.31
Unit Box Width0.125
Total power650
AC input voltage100 - 240
AC input frequency47 - 63
Input current10
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)100
Combined power (+12V)648
Combined power (+5V)100
Combined power (-12V)3.6
Combined power (+5Vsb)12.5
Max output current (+3.3V)20
Max output current (+12V)54
Max output current (+5V)20
Max output current (-12V)0.3
Max output current (+5Vsb)2.5
Power protection featuresOver current/Over power/Over voltage/Overheating/Short circuit/Under voltage
Motherboard power connector20+4 pin ATX
Motherboard power cable length650
Number of SATA power connectors9
SATA power cable length150/500
Peripheral (Molex) power connectors (4-pin)3
Peripheral (Molex) power cable length150/500
PCI Express power connectors (6+2 pin)2
PCI Express power cable length500
CPU power connector (4+4 pin)Yes
CPU power cable length800
Floppy drive power connector1
Connector(s)20+4 PIN ATX 1 8 PIN EPS(4+4) 2 8 PIN PCIe (6+2) 2 SATA 9 MOLEX/FLOPPY 3/1
