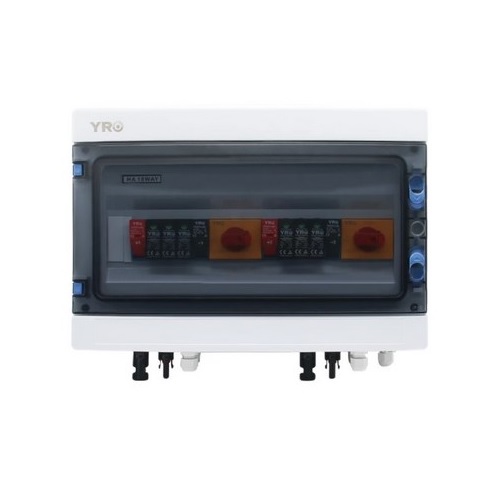

PV Combiner Box, DC 2in-2out, IP65

PV Combiner Box, DC 2in-2out, IP65
Features:2 input 2 output 1000V DC.DC string box is designed for 2 string PV system.For surge protection and isolating at solar DC side.Lightning protection (TUV CE), waterproof and dustproof IP65.The box is supplied with:1P fuse 30A (4 pcs).DC switch: 1000V/32A DC (2pcs).DC SPD: 3P, 1000V DC (2pcs).Designed for protection of photovoltaic cells.Certifications: TUV, CE, CB, RoSH.
Technical specifications:Input: 2 string.Output: 2 string.Max voltage: 1000V.Max current: 32A.Enclosure material: HA.Safety class: IP65.Dimensions: 240x210x100 mm.Operating temperature: -25°C ~ +60°C.
Warranty: 24 months.
