Description

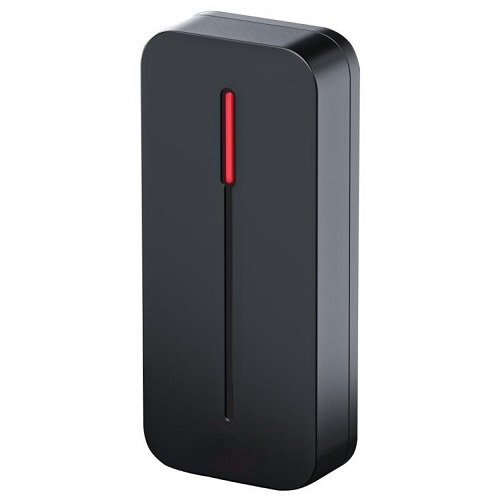

Mifare 13.56 MHz proximity card reader, Wiegand 26/34.
Features:
Card reader supporting Mifare 13.56 MHz cards.
The device operates as a Wiegand reader, transmitting the scanned card ID to an access control controller, which manages the door lock.
Communication distance: up to 100 m between the card reader and the access control controller.
Equipped with a dual-colour LED indicator.
Designed for extreme weather conditions with an operating temperature range of -40°C to +60°C.
Rated IP68 for water and dust resistance, making it suitable for both indoor and outdoor use.
Technical specifications:
Supported card frequency: 13.56 MHz.
Operating voltage: 9–12 V DC.
Standby current: up to 30 mA.
Card reading distance: 2–5 cm.
Output protocol: Wiegand 26/34-bit.
Wire connections: +12 V, GND, Wiegand D0/D1, LED, and buzzer.
Protection rating: IP68.
Operating temperature: -40°C to +60°C.
Operating humidity: 10%–90% RH.
Housing material: ABS plastic.
Dimensions: 109 x 47 x 20 mm.
Warranty: 24 months.
