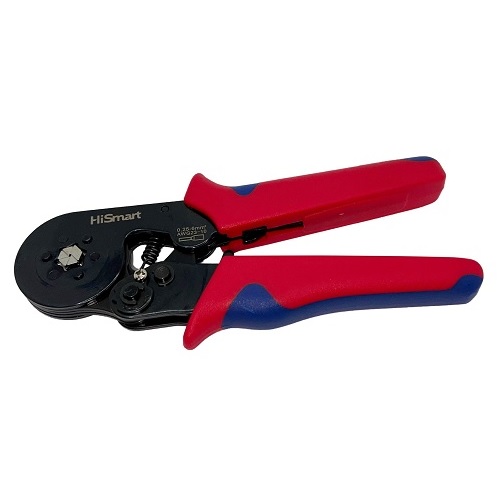

Self-adjusting crimping plier

Self-Adjusting Crimping Pliers for wire end sleeves with lateral access, hexagonal crimping.


Features:
Narrow handle width and improved ergonomics.
Optimum transmission of force due to toggle lever for fatigue-reduced operation.
High operation comfort thanks to handy shape and low weight
Hexagonal compression, lower grip width.
Self-adjustment to the size of wire end sleeves required.
Suitable in particular for all twin wire end sleeves up to 2 x 4 mm² or 2 x AWG 10.
Easy handling through self-setting to the sleeve size.
Possibility to lock / unlock consistently high crimping quality (self-releasing mechanism).
Crimp pressure is precisely set (calibrated) in the factory.


Specification:
Standard: DIN 46228, part 1 + 4.
Crimp area: 0.25-6 mm², 23-10 AWG.
Length: 180mm.
Weight: 404g.
Material: chrome vanadium electric steel in special quality, oil-hardened.


Warranty: 24 months.
