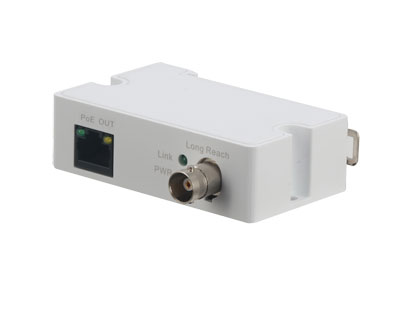

Single-Port Long Reach Ethernet over Coax Extender transmiter

Features:

• Supports IEEE802.3, IEEE802.3u standards
• Supports IEEE802.3af and IEEE802.3at power supply standards
• Port: 1*RJ45 10/100Mbps, 1*BNC
• Supports RG59 coaxial cable: 400m/100Mbps,1000m/10Mbps
• Supports MDI/MDIX self-adaption
• Supports long range power supply transmission via coaxial cable

Technical Specifications:

• Function Port 1*10/100 Mbps Base-TX 1*BNC
• Power Consumption <2W • Transmission Bandwidth RG59 coaxial cable: 400m/100Mbps, 1000m/10Mbps • PoE Protocol IEEE802.3af, IEEE802.3at • Network Standard IEEE802.3, IEEE802.3u, IEEE802.3x • Lightning Protection Common Mode 4KV • Differential Mode 2KV • Operating Temperature -30°C-65°C • Operating Humidity 5%~95% • Weight 61g • Dimension (W×D×H) 79mm×52mm×23mm
