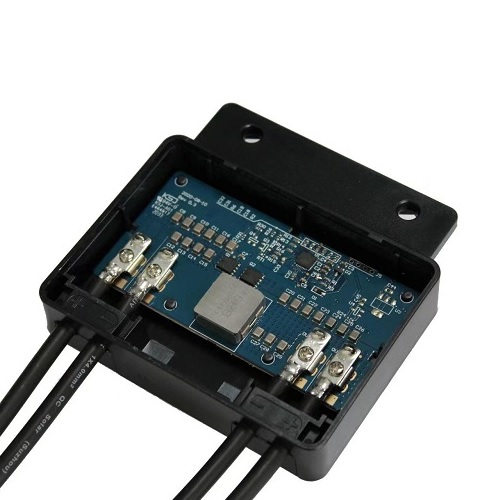

Solar Optimizer – Junction Box 600W

Solar Junction Box – PV Optimizer
Features:
With module level optimization. Max. 99.5% efficiency.
15A 600W, compatible with various PV modules.
Reduces PV module mismatch loss, suitable for complex and changeable installation sites.
Lower maintenance costs.
Safe and reliable for shaded PV panels.
Lower maintenance costs.
Water and dust resistant (IP68), flame retardant (UL 94-5VA), with short-circuit protection.


Specifications:
Input:
Rated Input DC Power: 600W.
Maximum Input Voltage: 55V DC.
MPPT Operating Range: 8-55V DC.
Max Input Current: 15A DC.
Maximum Efficiency: 99.5%.
Output:
Maximum Output Current: 15A DC.
Maximum Output Voltage: 42V DC.
Overcurrent Protection: 18A DC.
General parameters:
Voltage: 1500VDC.
Connectors: QC4.10 /MC4.
Contact Resistance: <0.5mOm. Size Of Cables: 5.7/6.1/6.4 mm. Wire length: input 0.5m, output 1m. Working temperature: -40°C ~ +85°C. Safety class: IP68. Fire rating degree: UL 94-5VA. Safety standards: UL1741,IEC62109-1. EMC: IEC61000-6-2, IEC61000-6-3. Weight: 510g. Dimensions:105x100x21mm.

Warranty: 24 months.
