Splicing connector, 6x 0.5-2.5mm², 24A, 450V, 100pcs | EL240432
Code: EL240432
Splicing connector, 6x 0.5-2.5mm², 24A, 450V, 100pcs | EL240432, Cable connectors, Cable connectors Splicing connector, 6x 0.5-2.5mm², 24A, 450V, 100pcs | EL240432, buy Splicing connector, 6x 0.5-2.5mm², 24A, 450V, 100pcs | EL240432, cheap Splicing connector, 6x 0.5-2.5mm², 24A, 450V, 100pcs | EL240432, best Splicing connector, 6x 0.5-2.5mm², 24A, 450V, 100pcs | EL240432, online Splicing connector, 6x 0.5-2.5mm², 24A, 450V, 100pcs | EL240432
Venipak courier 2-3 business days: 3.90 euro
Venipak pickup 2-3 business days: 3.30 euro
Description

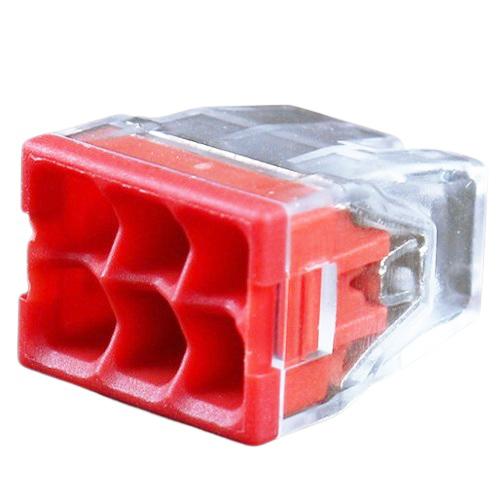

Splicing connector, 6x 0.5-2.5mm², 24A, 450V, 100pcs
Features:
Splicing wire connector designed for fast and secure connections of all conductor types: solid, fine-stranded, single strand or multi strand conductors.
Compact design saves space in junction boxes.
Transparent housing allows for easy visual inspection of the connection.
Technical specifications:
Number of connection points: 6.
Rated voltage: 450V.
Rated current: 24A.
Rated surge voltage (II/2): 4kV.
Conductor cross-sectional area: 0.5-2.5mm².
Insulating material: Polycarbonate (PC).
Operating temperature: 25~+85°C.
Dimensions: 14x16x10.5mm.
Weight: 194g (100pcs).
Color: transparent; red.
Set includes: 100 pcs.
Warranty: 24 months.
