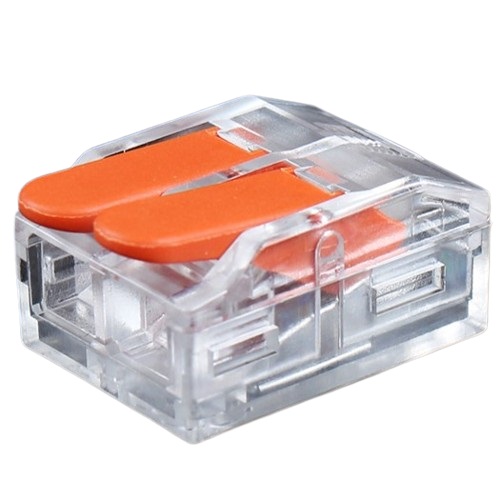

Splicing Connector with Lever, 2x 0.5-6.0mm², 41A, 450V, 20pcs

Splicing connector with lever, 2x 0.5–6.0mm², 41A, 450V, 20pcs

Features:
Splicing wire connector designed for fast and secure connections of all conductor types: solid, fine-stranded, single strand or multi strand conductors.
Compact design saves space in junction boxes.
Transparent housing allows for easy visual inspection of the connection.

Technical specifications:
Number of connection points: 2.
Rated voltage: 450V.
Rated current: 41A.
Rated surge voltage (II/2): 4kV.
Conductor cross-sectional area: 0.5-6.0mm².
Insulating material: Polycarbonate (PC).
Operating temperature: 25~+85°C.
Dimensions: 13.5x16x5.5mm.
Weight: 86g (20pcs).
Color: transparent; orange.
Set includes: 20 pcs.


Warranty: 24 months.
