Standalone Access Control with Keypad and Card Reader, Mifare | TV993772

Description

Multifunction keypad with integrated access controller and Mifare 13.56 MHz proximity card reader, Wiegand 26/34, 12-24V DC


Features:

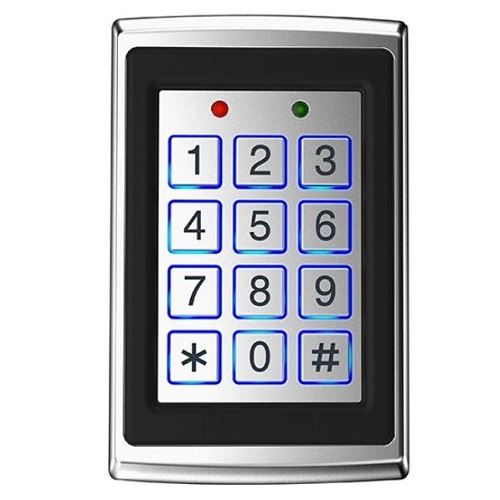

Compact standalone access control keypad with an integrated Mifare 13.56 MHz proximity card reader.
Supports three access methods: card, PIN code, or card + PIN code. Supported operating modes: standalone, relay toggle, and Wiegand 26/34 reader mode.
The numeric keypad with backlighting ensures convenient operation in low-light conditions. The metal keypad buttons are resistant to heavy use, mechanical impact, and wear, ensuring long-lasting and reliable operation.
Equipped with a dual-colour LED indicator.
The zinc alloy housing is designed for harsh environments, with an operating temperature range of -40°C to +60°C. With water and dust resistance, making it suitable for both indoor and outdoor use.


Technical specifications:
Access methods: PIN code, card, PIN code + card.
Number of users (cards): 2,000.
Supported card frequency: Mifare 13.56 MHz.
Operating voltage: 12-24 V DC.
Relay output load: up to 3 A.
Standby current: up to 30 mA.
Card reading distance: 2-5 cm.
Number of supported doors: 1.
Output protocol: Wiegand 26/34-bit.
Wire connections: DC 12-24 V, GND, Wiegand D0/D1, relay output, exit button, and doorbell.
Relay: 1 (for door lock, NO, NC, and COM contacts).
Adjustable relay activation time: 0-99 seconds.
Operating temperature: -40°C to +60°C.
Operating humidity: 10%-90% RH.
Housing material: zinc alloy.
Dimensions: 20 x 76 x 22 mm.


Warranty: 24 months.
