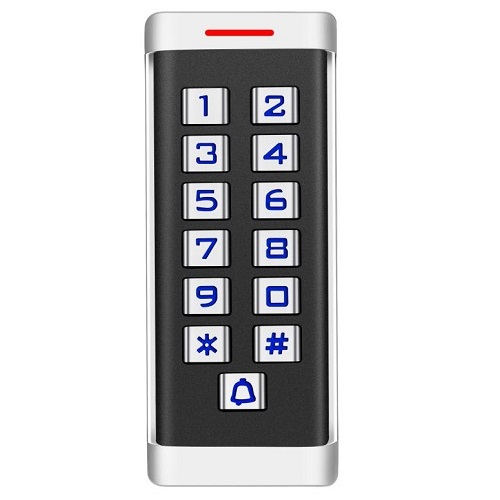

Standalone Access Control with Keypad and Card Reader, Mifare | TV993796

Description

Multifunction keypad with integrated access controller and Mifare 13.56Hz proximity card reader, Wiegand 26, IP65


Features:
Compact standalone access control keypad with an integrated Mifare 13.56Hz proximity card reader.
Supports three access methods: card, PIN code, or card + PIN code.
Supported operating modes: standalone, relay toggle, and Wiegand 26 reader mode.
The backlit numeric keypad ensures convenient operation in low-light conditions.
The metal keypad buttons are resistant to heavy use, mechanical impact, and wear, ensuring long-lasting and reliable operation.
Equipped with a dual-colour LED indicator.
Robust vandal-resistant zinc alloy housing with an electroplated finish.
Designed for harsh environments, with an operating temperature range of -40°C to +60°C. Rated IP65 for water and dust resistance, making it suitable for both indoor and outdoor use.


Technical specifications:
Access methods: PIN code, card, or PIN code + card.
Number of users (cards): 2,000.
Supported card type: Mifare 13.56Hz.
Operating voltage: 12 V DC.
Relay output load: up to 1 A.
Standby current: up to 30 mA.
Operating current: up to 60 mA.
Card reading distance: 3–6 cm.
Number of supported doors: 1.
Wiegand input/output: 26-bit.
Wire connections: +12 V DC, GND, Wiegand D0/D1, relay output, exit button, and doorbell.
Relay: 1 (for door lock, NO, NC, and COM contacts).
Adjustable relay activation time: 0–99 seconds.
Protection rating: IP65.
Operating temperature: -40°C to +60°C.
Operating humidity: 10%–90% RH.
Housing material: zinc alloy.
Dimensions: 142 x 58 x 25 mm.
Colour: silver, black.


Warranty: 24 months.
