Thermal Actuator, NC, 230V AC | HT260096
Code: HT260096
Thermal Actuator, NC, 230V AC | HT260096, Smart Heating and Ventilating Solutions, Smart Heating and Ventilating Solutions Thermal Actuator, NC, 230V AC | HT260096, buy Thermal Actuator, NC, 230V AC | HT260096, cheap Thermal Actuator, NC, 230V AC | HT260096, best Thermal Actuator, NC, 230V AC | HT260096, online Thermal Actuator, NC, 230V AC | HT260096
Venipak courier 2-3 business days: 3.90 euro
Venipak pickup 2-3 business days: 3.30 euro
Description

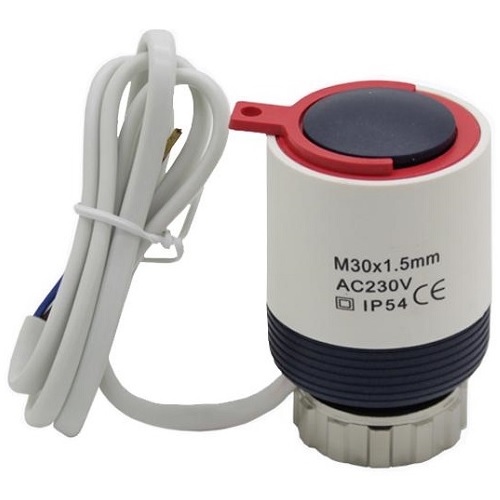

Thermal actuator, NC, 230V
Features:Electric thermal actuator is designed for controlling the heat distribution equipment. It receives commands from automation devices (such as room thermostats or hub controller) and adjusts the water flow distribution according to set parameters. The thermal actuator allows precise control of room temperature and energy consumption.The thermal actuator is in NC (normally closed) state. It is not suitable for use in a system heated by a solid fuel boiler.The actuator works with any type of programmable or non-programmable room thermostats.Simple installation, the thermal actuator is connected to the heating manifold with M30 thread.Energy consumption is only 2W.
Technical data:Application: water heating system.Thermal actuator type: NC (normally closed).Operating voltage: AC 230V, 50/60Hz.Starting current: 50mA.Actuation time: up to 180s (valve off/on).Power consumption: 2W.Power: 100N (± 10%).Installation: connected to the collector.Thread: M30x1.5mm.Cable length: 80cm.Operating temperature: -20°C~+50°C.Operating humidity: 5%~95%RH (non-condensing).Safety class: IP54.Dimensions: 40 x 40 x 68 mm.Colour: white.Certificates: CE EN60730.
Warranty: 24 months.
