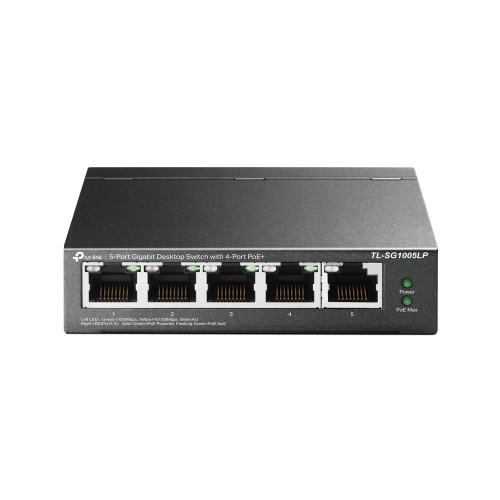

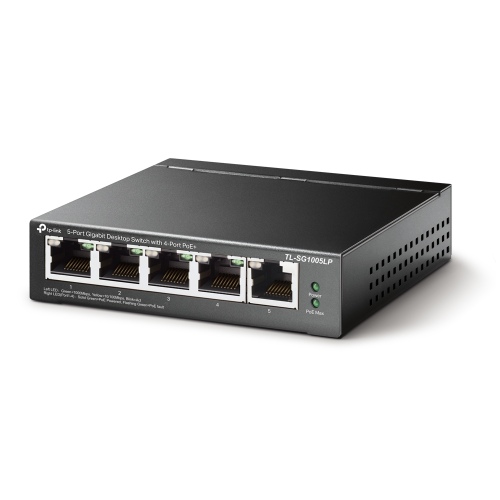

TP-Link TL-SG1005LP 5-Port Gigabit Desktop Switch with 4-Port PoE+

Description

Professional 5-Port Gigabit Switch with 4 PoE+ Ports
Plug and Play, with PoE power supply which meets the needs of diverse devices.

Dedicated 4-Port PoE+ Switch (40 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 40 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Intelligent Power Management
When total power consumption exceeds 40 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Advanced Functions for Higher Performance
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Durable Metal Casing
The interior components of TL-SG1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005LP delivers switching performance you can depend on.

Certification FCC, CE, RoHS
Package width 131 mm
Package depth 196 mm
Package height 121 mm
Package weight 730 g
Operating relative humidity (H-H) 10 – 90%
Package type Box
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 90%
AC input voltage 100 – 240 V
AC input frequency 50/60 Hz
Power source DC/PoE
Product colour Black
Width 99.8 mm
Depth 98 mm
Height 25 mm
Operating temperature (T-T) 0 – 40 °C
Harmonized System (HS) code 85176990
User guide Yes
Input current 0.81 A
LED indicators Yes
Power consumption (max) 47.5 W
Sustainability compliance
Networking standards IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Wall mountable Yes
Switch type Unmanaged
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 5
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 5
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Flow control support Yes
