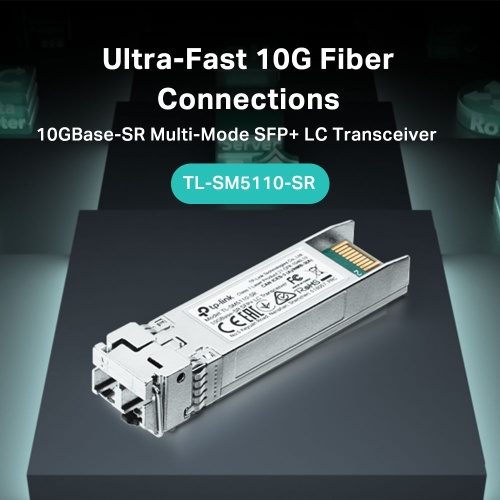

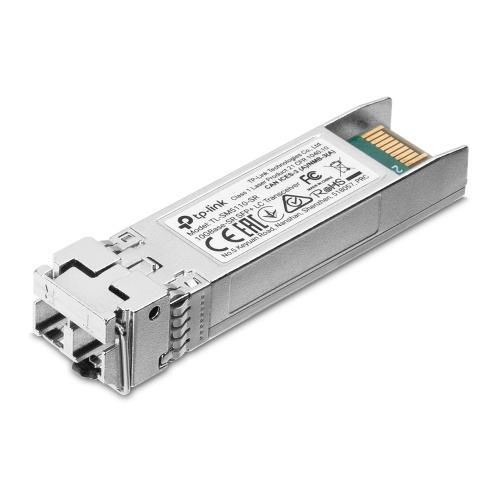

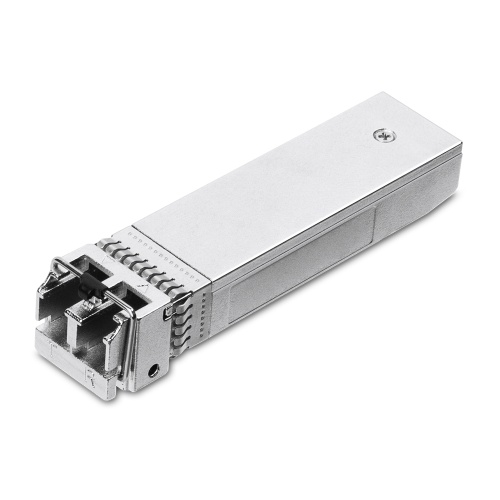

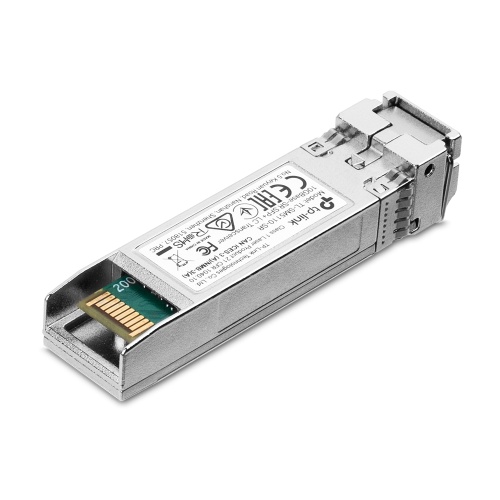

TP-Link TL-SM5110-SR 10GBase-SR SFP+ LC Transceiver

Description

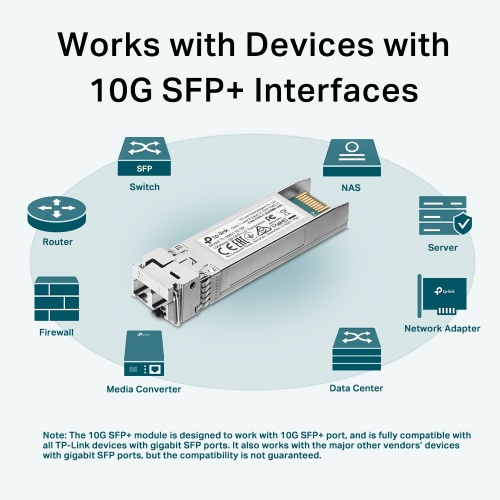

The TL-SM5110-SR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-SR high performance 850nm multi-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 300m or 33m with 50/125µm or 62.5/125µm fiber cables respectively.

Certification FCC, CE
Package width 81.5 mm
Package depth 122.5 mm
Package height 38.5 mm
Package weight 60 g
Operating relative humidity (H-H) 10 – 90%
Storage temperature (T-T) -40 – 80 °C
Storage relative humidity (H-H) 5 – 90%
Product colour Silver
Width 14.5 mm
Depth 61.3 mm
Height 12.2 mm
Operating temperature (T-T) 0 – 70 °C
Harmonized System (HS) code 85369010
Input voltage 3.3 V
Maximum data transfer rate 10000 Mbit/s
Hot-swap Yes
Interface type SFP+
Wavelength 850 nm

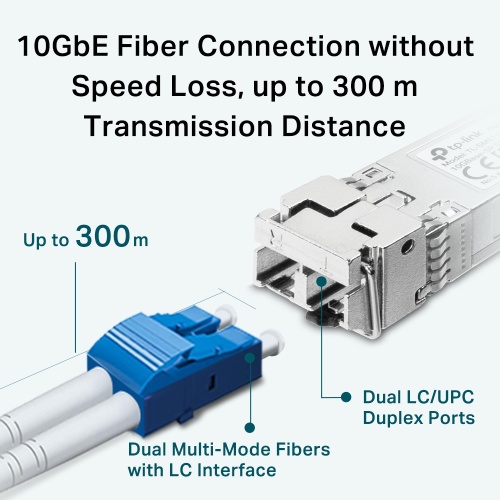

Fiber optic connector LC (UPC)
Maximum transfer distance 300 m
SFP transceiver type Fiber optic
Multi-mode fiber (MMF) supported
Fiber cable diameters supported (core/cladding) 50/125,62.5/125 µm
Digital Diagnostics Monitoring (DDM) Yes
