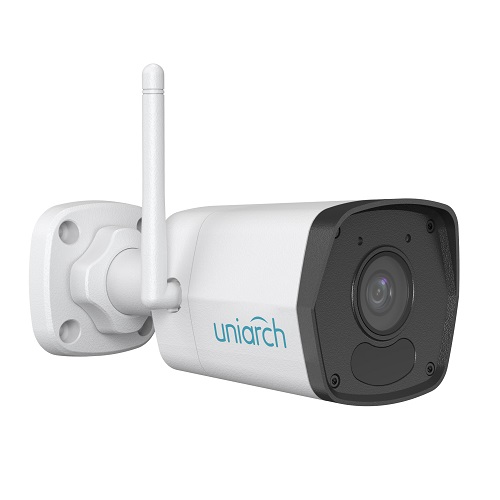

UNIARCH 2MP HD Outdoor Bullet Wi-Fi Camera

Description

IP67 outdoor IP bullet camera, for home, office or small shop security and peace of mind. It features 2MP resolution, 4.0mm fixed lens, FOV 83.7°, smart IR night vision up to 30 meters. Remote access via Wi-Fi, supported data recording to an SD card up to 128GB.

Features:
Infrared filter with automatic switch (ICR) allows clear night vision up to 30 meters.
2.4GHz Wi-Fi connection and easy installation.
Motion detection, sound detection, human detection and tampering alarm are supported.
Built-in microphone.
Data storage: supports micro SD(TF) card up to 128GB (card not included).
The package includes: power adapter, mounting bracket and mounting screw set.
Note: SD card is purchased separately.


Technical specifications:
Sensor: 1/2.9″ 2MP.
Scanning System: Progressive.
Lens: 4.0mm F2.1.
IRIS: Fixed.
Field of View: 83.7°(H).
Max Resolution: 1920×1080 pixels.
IR illumination: up to 30m.
IR Wavelength: 850 nm.
IR ON/OFF control: Auto / Manual.
Electronic Shutter: Auto / Manual, 1 ~ 1/100000s.
3-axis adjustment angle: (Pan: 0°~360° Tilt: 0°~90° Rotation: 0°~360°).
Flip: Normal/Vertical/Horizontal/180°.
Day/Night Mode: auto-switch ICR, IR-cut filter.
Min. Illumination: 0.01 lux (Colour, F2.1, AGC On); 0 lux (IR on).
Video Compression: Ultra 265, H.265, H.264, MJPEG.
Frame rate: Main stream: 1080p(1920×1080)@25fps; 720p(1280×720)@25fps; Sub stream: 720P(1280×720)@25fps; D1(720×576)@25fps; (640×360)@25fps; 2CIF(704×288)@25fps; CIF(352×288)@25fps.
Video Bitrate: 128 Kbps ~ 6 Mbps.
WDR (Wide Dynamic Range): DWDR.
S/N Ratio: >52dB.
ROI: Up to 8 areas.
Privacy Masking: Up to 4 areas.
Noise Reduction: 2D/3D DNR.
White Balance: Auto / Outdoor / Fine Tune / Sodium Lamp / Locked / Auto 2
Defog: Digital Defog.
Basic Detection: Motion detection, human detection, audio detection.
Audio Compression: G.711U, G.711A.
Audio Bitrate: 64 Kbps.
Built-in Microphone: yes.
Built-in Speaker: no.
Two-Way Audio: no.
Suppression: Supported.
MicroSD Slot: Supports up to 128GB.
Wireless: 2.4GHz Wi-Fi (IEEE802.11b/g/n), built-in antenna.
Network Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP.
Standards supported: API, SDK, ANR, NAS(NFS).
Supported Browsers: IE 10+, Chrome 45+, Firefox 52+, Edge 79+.
Network Port: 1 x RJ45 10M/100M Base-TX Ethernet.
Users: max 6.
Power Interface: Ø5.5 mm coaxial power plug.
Power Supply: DC 12V.
Power consumption: Max 3.6W.
Dimensions: 168mm x 88mm x 72mm (6.6” x 3.5” x 2.8”).
Reset Button.
LED Indicator: 1 (red/ green).
Operating Temperature: -30°C ~ +60°C.
Operating Humidity: <95% RH (non-condensing). Weight: 0.28kg (0.62lb). Color: White, Black. Protection class: IP67. Surge protection: 4 KV. Certifications: EMC: CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035); FCC (FCC 47 CFR part15 B). RF: FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311). Safety: CE LVD (EN 62368-1). Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU).

Warranty: 24 months.

Download Datasheet.pdf
