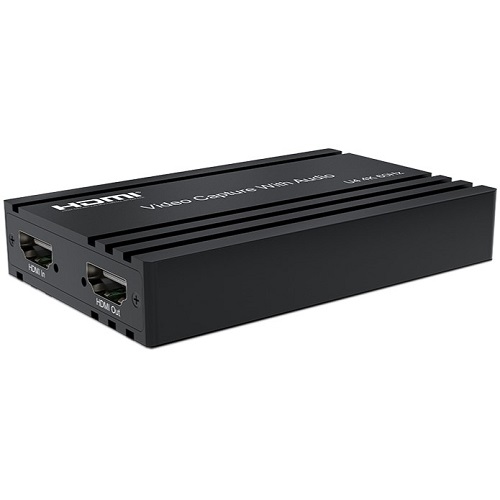

Video Capture with Loop HDMI, USB3.0, 4K 60Hz | CA916023

Description

The HDMI video capture can capture HDMI video and HDMI audio with MIC audio mix. It can transmit audio signal to computer and smartphone to preview and storage, suitable for game live meetings, the HD recording supports the XRGB format. The max resolution can be up to 4K/60Hz.Features: Supports maximum resolution up to 4K@60Hz.Supports digital content protection standards HDCP2.2 and HDCP1.4, and HDR10 video quality technology.Supports microphone audio input, 3.5 mm stereo audio output.Automatic input signal detection.Supported video formats: MJPEG / YUY2 / NV12 / I420 / XRGB.Uncompressed video and audio capture, compliant with UVC and UAC standards.Power supply via USB Type-C, Plug & Play, no drivers required.Compatible with operating systems: Windows, MacOS.Compatible with software: OBS, Potplayer, VLC, Vmix, etc.Supports up to 18Gbps data transfer rate and bandwidth up to 600 MHz.Supports standard HDMI AWG26 cable up to 5 meters.Specifications: Input resolution: max. 4K@60Hz, 4:4:4 (full resolution without compression).Output resolution: max. 4K@60Hz.Input: 4K HDMI 2.0 input, microphone input.Output: 4K HDMI 2.0 loop-out, USB Type-C (5Gbps) output, audio output.Video output formats: MJPEG / YUY2 / NV12 / I420 / XRGB.Supported audio formats: compliant with UVC and UAC standards.Voltage: 5V DC.Current: max. 0.7A.Maximum bandwidth: 600MHz.Maximum data transfer speed: 18Gbps.Cable length: <5m, HDMI cable AWG26.Operating temperature: -10°C~+55°C.Dimensions: 100x63x16 mm.Weight: 126 g.Warranty: 12 months.
