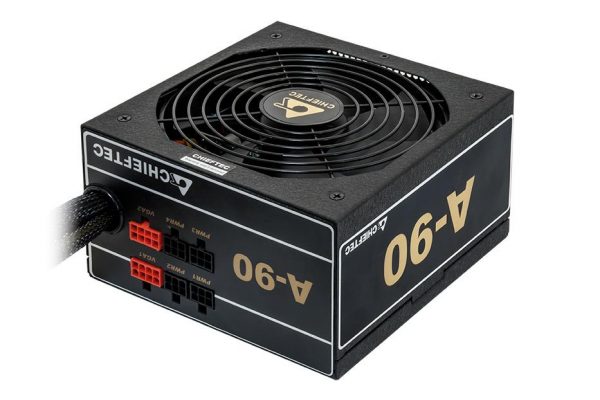

Power Supply|CHIEFTEC|PS/2|PC|200 – 240 V|750 W|GDP-750C

Name: Power Supply|CHIEFTEC|PS/2|PC|200 - 240 V|750 W|GDP-750C
Brand: CHIEFTEC
SKU: 1207558
Price: 69.00 EUR
Availability: InStock

Code: 4710713230842

69 €

56 in stock

Power Supply|CHIEFTEC|PS/2|PC|200 - 240 V|750 W|GDP-750C, Desktop Computer PSU, Desktop Computer PSU Power Supply|CHIEFTEC|PS/2|PC|200 - 240 V|750 W|GDP-750C, buy Power Supply|CHIEFTEC|PS/2|PC|200 - 240 V|750 W|GDP-750C, cheap Power Supply|CHIEFTEC|PS/2|PC|200 - 240 V|750 W|GDP-750C, best Power Supply|CHIEFTEC|PS/2|PC|200 - 240 V|750 W|GDP-750C, online Power Supply|CHIEFTEC|PS/2|PC|200 - 240 V|750 W|GDP-750C

SKU: 1207558 Category: Desktop Computer PSU Brand: CHIEFTEC

Shipping:
Omniva pickup 2-3 business days: 3.50 euro
Courier 2-3 business days: 6.00 euro

Description	Блок живлення ATX 2.3 Chieftec A-90 750W 80 PLUS GOLD Black (GDP-750C) Efficiency at low cost, that’s the reason, why the new A-90 series from CHIEFTEC has been invented. The three high performance PSU’s cover with their nominal power output of 550 watts – 750 watts all kinds of usage possibilities. With a fixed output voltage of 230 V, this power supply series is especially made for cost-aware computer consumers. The PSU’s have an efficiency of >90% and thus meet the 80plus gold requirements.
Summary	Chieftec GDP-750C. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Semi-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Width: 160 mm, Depth: 150 mm, Height: 87 mm
Vendor Homepage	https://www.chieftec.eu/products-detail/109/A-90-SERIES/112/GDP-750C
Category Code	PSU
CnCode	85044095
Unit Box Height	0.1
Unit Box Length	0.25
Unit Box Width	0.22
Total power	750
AC input voltage	200 - 240
AC input frequency	47 - 63
Power factor	0.9
Power Factor Correction (PFC) type	Active
Combined power (+3.3V)	120
Combined power (+12V)	744
Combined power (+5V)	120
Combined power (+5Vsb)	2.5
Max output current (+3.3V)	22
Max output current (+12V1)	62
Max output current (+5V)	22
Max output current (-12V)	0.3
Power protection features	Over current/Over voltage/Overheating/Overload/Short circuit/Under voltage
Motherboard power connector	20+4 pin ATX
Number of SATA power connectors	8
SATA power cable length	150/550
Peripheral (Molex) power connectors (4-pin)	3
Peripheral (Molex) power cable length	150/550
EPS power connector (8-pin)	Yes
PCI Express power connectors (6+2 pin)	4
Floppy drive power connector	1
Connector(s)	20+4 PIN ATX 1 8 PIN EPS(4+4) 1 8 PIN PCIe (6+2) 4 SATA 8 MOLEX/FLOPPY 3/1
Cabling type	Semi-Modular
Purpose	PC
Power supply unit (PSU) form factor	PS/2
ATX version	2.3
Product colour	Black
