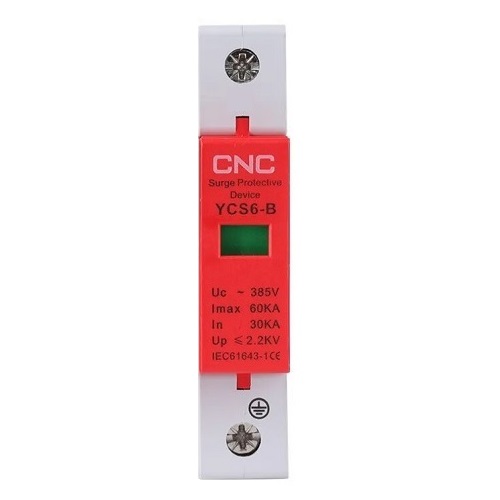

Surge Protection Device, 1P, Class B, 30-60 kA, 385VAC | NV821686
Code: NV821686
Surge Protection Device, 1P, Class B, 30-60 kA, 385VAC | NV821686, SPD Overvoltage Protection, SPD Overvoltage Protection Surge Protection Device, 1P, Class B, 30-60 kA, 385VAC | NV821686, buy Surge Protection Device, 1P, Class B, 30-60 kA, 385VAC | NV821686, cheap Surge Protection Device, 1P, Class B, 30-60 kA, 385VAC | NV821686, best Surge Protection Device, 1P, Class B, 30-60 kA, 385VAC | NV821686, online Surge Protection Device, 1P, Class B, 30-60 kA, 385VAC | NV821686
Venipak courier 2-3 business days: 3.90 euro
Venipak pickup 2-3 business days: 3.30 euro
Description
Surge Protection Device, 1P, Class B, 30-60 kA, 385V
Features:
Intended to protect electrical devices from voltage spikes, which can arise from a variety of causes including lightning strikes in the vicinity.
The product is usually installed in the incoming line low voltage distribution box of the building, and it can release 100kA lightning stroke current.
Suitable for systems: TT, IT, TN-S, TN-C, TN-C-S.
Standards: IEC 61643-1, GB18802.1, GB50057, CE.
Specifications:
Number of contacts: 1.
Class: B.
Maximum continuous operating voltage (Uc): 385 V AC.
Maximum discharge current (Imax): 60 kA.
Nominal discharge current (In): 30 kA.
Voltage protection level (Up): < / = 2.2 kV.
Response time: <25 ns.
Frequency: 50/60 Hz.
Operating temperature: -40°C to +85°C.
Relative humidity (at 25°C): <95%.
Installation: on DIN rail (35mm).
Wires cross-section: up to 6-10 mm².
Dimensions: 18 x 90 x 67 mm.
Warranty: 24 months.
