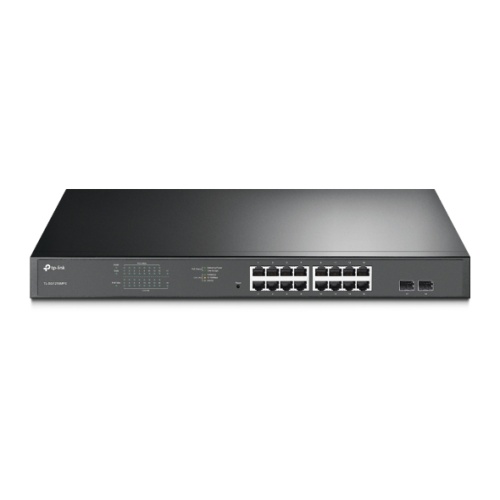

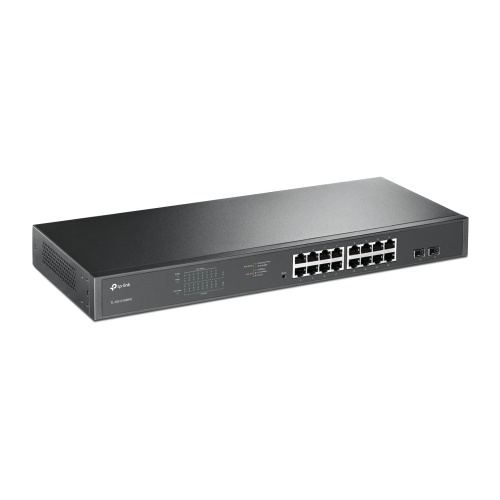

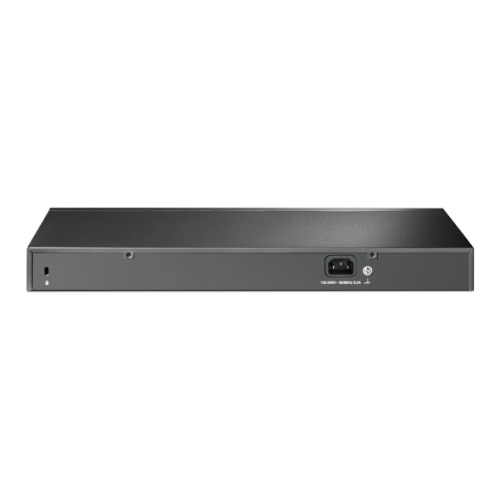

TP-Link TL-SG1218MPE 16-Port Gigabit Easy Smart PoE+ Switch

Description

Ideal for Surveillance
TL-SG1218MPE complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management
When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Making Management Easy
TL-SG1218MPE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Certification CE, FCC, RoHS
Package width 250 mm
Package depth 528 mm
Package height 80 mm
Package weight 2.91 kg
Operating relative humidity (H-H) 10 – 90%
Storage temperature (T-T) -40 – 70 °C
Storage relative humidity (H-H) 5 – 90%
Form factor 1U
Cables included AC
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Power source AC
Product colour Black
Width 440 mm
Depth 180 mm
Height 44 mm
Operating temperature (T-T) 0 – 50 °C
Harmonized System (HS) code 85176990
Security algorithms SNMP, SNMPv2, SNMPv3
User guide Yes
Power consumption (max) 217.22 W
Networking standards
Web-based management Yes
Switch type Managed
Switch layer L2
Quality of Service (QoS) support Yes
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity 16
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
VLAN support Yes
