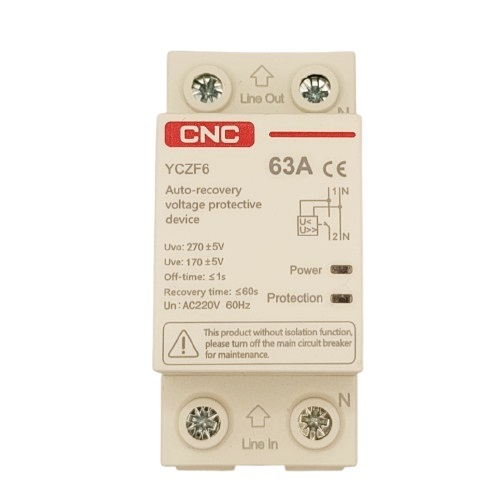

Self-Recovery Overvoltage and Undervoltage Protector, 1P+N, 63A, 230V

Overvoltage and undervoltage protector, 1P+N, 63A, 230V self-recovery


Features:
Self-recovery overvoltage and undervoltage protector is used to protect electrical equipment from overvoltages or undervoltages.
Automatic protection against voltage fluctuations is suitable for AC 230V circuits with a rated operating current of max 63A.
When overvoltage or undervoltage problems occur in the circuit, the protector quickly and safely breaks
the circuit, and when the circuit voltage returns to normal, it automatically turns on the power.
Compact design, reliable operation, easy installation on a DIN rail.
With power and protection function LED indicators (red, green).
It is mainly sed in household distribution boxes or other distribution lines that requiring protection.
Main functions:
1. Overvoltage protection.
2. Undervoltage protection.
3. Automatic recovery.
Note: The inclination of installing surface cannot exceed 5°.


Technical specifications:
Rated voltage: AC 230V.
Current: 63 A.
Frequency: 50/60Hz.
Overvoltage operating cutoff value: AC 270V ±5V.
Undervoltage operating cutoff value: AC 170V ±5V.
Overvoltage recovery value: AC 255V ±5V.
Undervoltage recovery value: AC 185V ±5V.
Response time: < /= 1s. Recovery time: < /=60s. Poles: 1P+N. Power consumption: < 2W. Electrical life: > 50000 times.
Installation: on DIN rail (35mm).
Operating temperature: from -35°C to +70°C.
Relative humidity (at 40°C): <50%. Dimensions: 36.5 x 78.7 x 66.5 mm. Color: white.

Warranty: 24 months.
